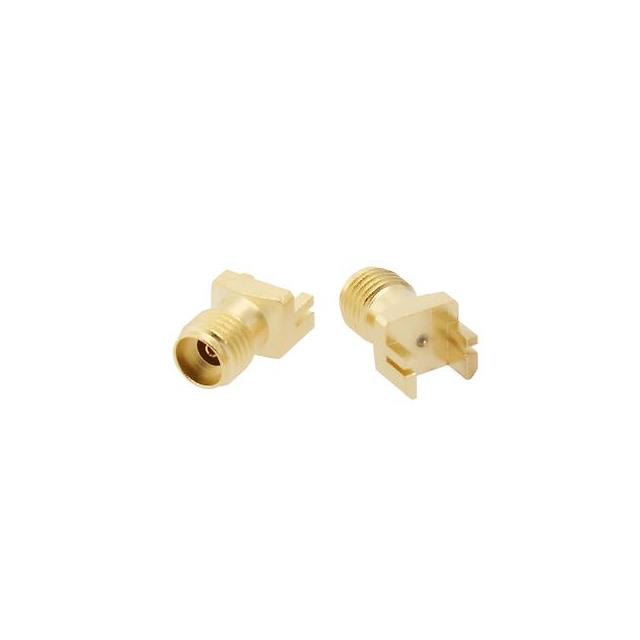

SM03FS009
ActiveWITHWAVE CO LTD
BOARD EDGE 2.92 MM (DC TO 40 GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM03FS009
ActiveWITHWAVE CO LTD
BOARD EDGE 2.92 MM (DC TO 40 GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM03FS009 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.70 | |
| 10 | $ 26.30 | |||
| 25 | $ 24.90 | |||
| 50 | $ 23.50 | |||
Description
General part information
SM03F Series
2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
