Description
General part information

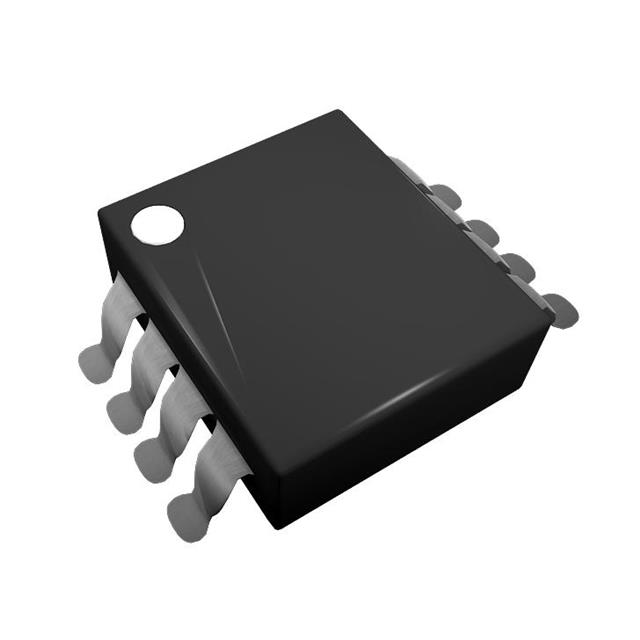

AZRS6534
1/1 Transceiver Half RS422, RS485 8-SOIC
Technical Specifications
Parameters and characteristics for this part
| Specification | AZRS6534 |
|---|---|
| Data Rate | 8 MHz |
| Duplex | Half |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 0.154 in |
| Package Name | 8-SOIC |
| Package Width | 3.9 mm |
| Protocol | RS422, RS485 |
| Type | Transceiver |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
