PU2512FKGP60U3L

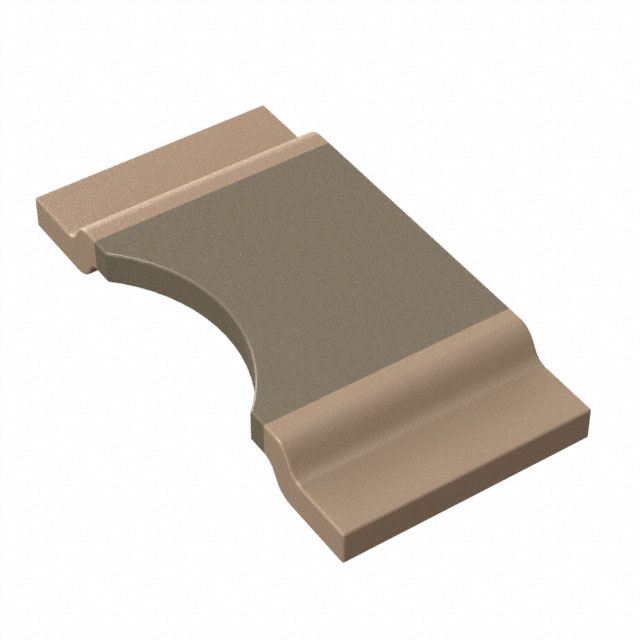

PU2512FKGP60U3L is a PU series automotive grade power shunt metal current resistor. It is a perfect solution for current sensing applications with high power rating requirements. Typical applications include power, telecom base station, automotive (headlight/ window control/ engine control unit/ steering control) and alternative energy.
Technical Specifications
Parameters and characteristics for this part
| Specification | PU2512FKGP60U3L |
|---|---|
| Composition | Metal Element |
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) | 0.02 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2512 (6332 Metric), 2512 (6432 Metric) |
| Package Name | 2512 |
| Power (Watts) | 6 W |
| Ratings | AEC-Q200 |
| Resistance | 300 µOhms |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
