PFC212236A-201K
ActiveITG Electronics, Inc.
205UH, 10%, 20.5MOHM, 39.9AMP MA
PFC212236A-201K
ActiveITG Electronics, Inc.
205UH, 10%, 20.5MOHM, 39.9AMP MA
Description
General part information
PFC212236A-201K

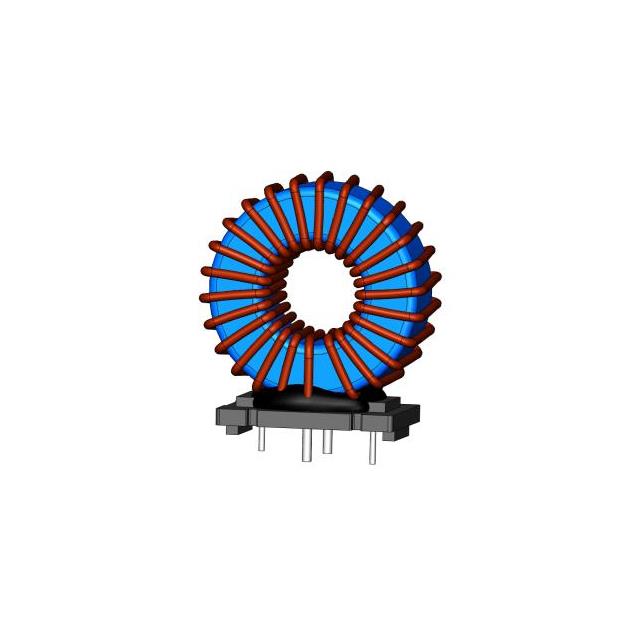

205 µH Shielded Toroidal Inductor 20.3 A 20.5mOhm Radical, Vertical, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC212236A-201K |
|---|---|
| Current - Saturation (Isat) | 39.6 A |
| Current Rating | 20.3 A |
| DC Resistance (DCR) | 20.5 mOhm |
| Height - Seated (Max) | 2.37 in |
| Inductance | 205 µH |
| Material - Core | Alloy |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radical, Vertical |
| Shielding | Shielded |
| Tolerance | 10 % |
| Type | Toroidal |
