3002892
ObsoletePhoenix Contact

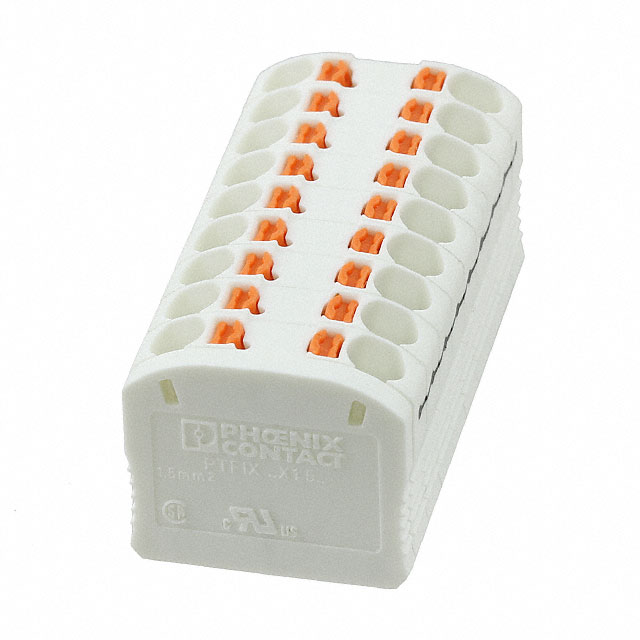

DISTRIBUTION BLOCK WHITE
3002892
ObsoletePhoenix Contact
DISTRIBUTION BLOCK WHITE
Description
General part information
3002892
18 Position Terminal Block White Middle 37.4mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 3002892 |
|---|---|
| Current - IEC | 17.5 A |
| Current - UL | 15 A |
| Features | Block of 3 |
| Height (Max) | 0.736 in |
| Housing Color | White |
| Length | 0.85 in |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Direct Mount |
| Number of Levels | 1 |
| Number of Positions | 18 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -60 °C |
| Stripping Length | 10 mm |
| Terminal Width | 37.4 mm |
| Termination Style | Push In, Spring |
| Type | Middle |
| Voltage - IEC | 450 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
