WO-8718L-08S-RO
ActiveLin Engineering

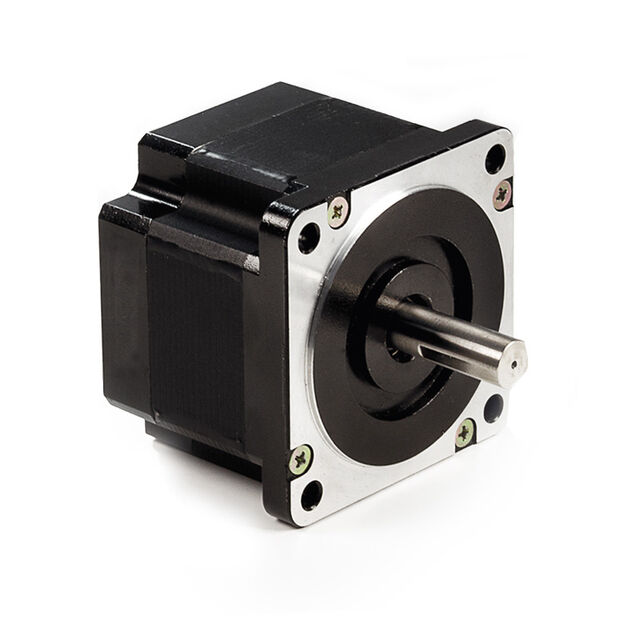

STEPPER MOTOR - NEMA 34
WO-8718L-08S-RO
ActiveLin Engineering
STEPPER MOTOR - NEMA 34
Description
General part information
WO-8718L-08S-RO
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 3.85 A 48VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | WO-8718L-08S-RO |
|---|---|
| Coil Resistance | 1.2 Ohms |
| Coil Type | Bipolar |
| Current Rating | 3.85 A |
| Diameter - Shaft | 0.5 in |
| Features | Flatted Shaft |
| Length - Shaft and Bearing | 1.46 in |
| Mounting Hole Spacing | 2.74 in |
| NEMA Frame Size | 34 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Rotor Inertia | 4000 gcm² |
| Size / Dimension Length | 3.39 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.39 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 steps |
| Termination Style | Wire Leads |
| Torque - Holding (mNm) | 9100 mNm |
| Torque - Holding (oz-in) | 1288.7 oz-in |
| Type | Hybrid |
| Voltage - Rated | 48 VDC |
