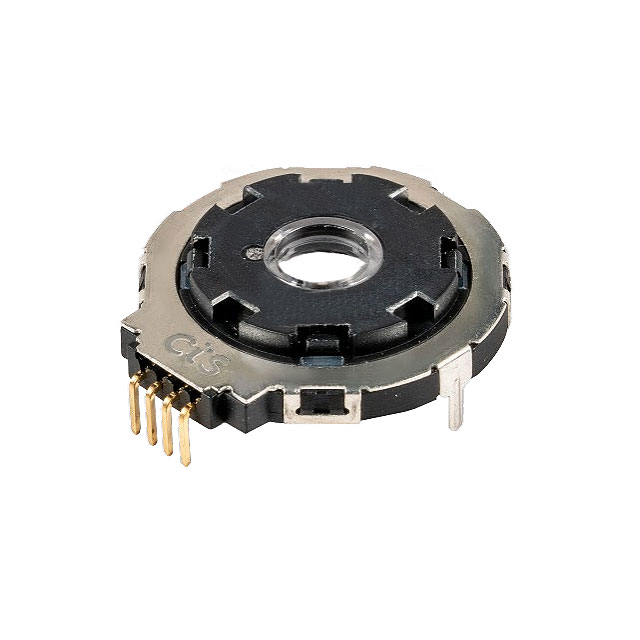

292V1X00B
ActiveCTS Electrocomponents
ROTARY ENCODER OPTICAL 24PPR
292V1X00B
ActiveCTS Electrocomponents
ROTARY ENCODER OPTICAL 24PPR
Description
General part information
292V1X00B
Rotary Encoder Optical 24 Quadrature, 2-Bit User Selectable
Technical Specifications
Parameters and characteristics for this part
| Specification | 292V1X00B |
|---|---|
| Actuator Type | Hole for Shaft |
| Built in Switch | No, Yes |
| Detent | No |
| Encoder Type | Optical |
| Mounting Type | Through Hole, PCB |
| Orientation | User Selectable |
| Output Type | Quadrature, 2-Bit |
| Pulses per Revolution | 24 |
| Rotational Life (Cycles Min) | 3 M |
| Termination Style | PC Pin |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 2.97 V |
