SAJ13XXHL0N88SNOPTQ

Active

TE Connectivity Raychem Cable Protection

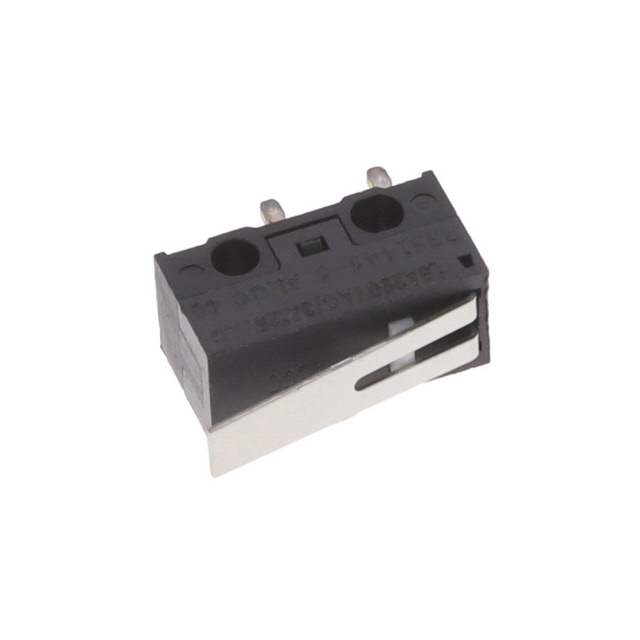

SWITCH SNAP ACT SPST-NO 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ13XXHL0N88SNOPTQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACT SPST-NO 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ13XXHL0N88SNOPTQ

Actuator Type	Lever, Straight
Circuit	SPST-NO
Current Rating (Amps)	3 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	6000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	40 gf
Operating Position [custom]	0.335 in
Operating Position [custom]	8.5 mm
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Overtravel	0.022 in
Overtravel	0.55 mm
Pretravel	0.12 in
Pretravel	3 mm
Release Force	2 gf
Switch Function	Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

SAJ13X Series

Part	Electrical Life	Termination Style	Voltage Rating - AC	Actuator Type	Circuit	Switch Function	Operating Position	Operating Position	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Differential Travel	Differential Travel	Mechanical Life	Operating Force	Pretravel	Pretravel	Mounting Type	Current Rating (Amps)	Operating Position [custom]	Operating Position [custom]
TE Connectivity Raychem Cable Protection SAJ13XXBL0N88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NC	On-Mom	9.6 mm	0.378 in	2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	26 gf	0.087 in	2.2 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SDTPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPDT	On-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXHL0N88SNOPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NO	Off-Mom			2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	40 gf	0.12 in	3 mm	Through Hole	3 A	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SNOPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPST-NO	Off-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXPP0N88SDTPTQ	6000 Cycles	PC Pin	125 V	Round (Pin Plunger)	SPDT	On-Mom	6.9 mm	0.272 in		-25 °C	75 ░C	0.008 in	0.2 mm	0.2 mm	0.008 in	500000 Cycles	90 gf	0.02 in	0.5 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXHL0N88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPST-NC	On-Mom			2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	40 gf	0.12 in	3 mm	Through Hole	3 A	0.335 in	8.5 mm
TE Connectivity Raychem Cable Protection SAJ13XXPP0N88SNOPTQ	6000 Cycles	PC Pin	125 V	Round (Pin Plunger)	SPST-NO	Off-Mom	6.9 mm	0.272 in		-25 °C	75 ░C	0.008 in	0.2 mm	0.2 mm	0.008 in	500000 Cycles	90 gf	0.02 in	0.5 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXRHLN88SNCPTQ	6000 Cycles	PC Pin	125 V	Lever Simulated Roller	SPST-NC	On-Mom	10.2 mm	0.4 in	2 gf	-25 °C	75 ░C	0.02 in	0.5 mm	0.45 mm	0.018 in	500000 Cycles	40 gf	0.15 in	3.8 mm	Through Hole	3 A
TE Connectivity Raychem Cable Protection SAJ13XXBL0N88SDTPTQ	6000 Cycles	PC Pin	125 V	Lever Straight	SPDT	On-Mom	9.6 mm	0.378 in	2 gf	-25 °C	75 ░C	0.022 in	0.55 mm	0.5 mm	0.02 in	500000 Cycles	26 gf	0.087 in	2.2 mm	Through Hole	3 A
