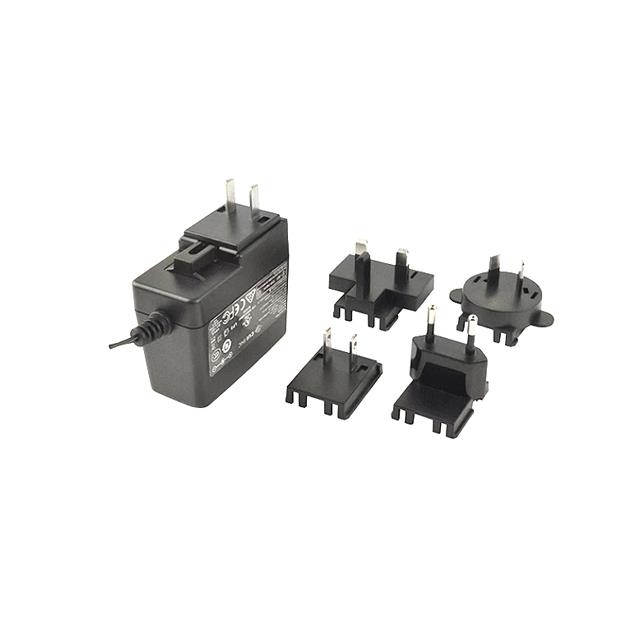

BB-SMI1812VP230C1

BB-SMI1812VP230C1

Active
Advantech Corporation

PS,WW,12DC,18W,1.6A,2.1X9.5MM, I

Find alt
BB-SMI1812VP230C1

BB-SMI1812VP230C1

Active
Advantech Corporation

PS,WW,12DC,18W,1.6A,2.1X9.5MM, I

Find alt

Description

General part information

BB-SMI1812VP230C1

12V 19 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical Specifications

Parameters and characteristics for this part

SpecificationBB-SMI1812VP230C1
ApplicationsITE (Commercial)
Approval AgencyRCM, PSE, UL, CCC, cUL
Cord Length59 in
Current - Output (Max)1.6 A
EfficiencyLevel VI, CoC Tier 2
FormWall Mount (Class II)
Input ConnectorMulti-Blade (Included)
Input TypeMulti-Blade (Included)
No Load Power Consumption100 mW
Operating Temperature (Max)40 °C
Operating Temperature (Min)0 °C
Output ConnectorPhono Plug
Output Connector Length11 mm
Output Connector Outer Diameter2.5 mm
Power (Watts)19 W
Region UtilizedInternational
Size / Dimension Height2.58 in
Size / Dimension Length2.95 in
Size / Dimension Width1.41 in
Voltage - Input (AC) Maximum264 V
Voltage - Input (AC) Minimum90 V
Voltage - Output12 V
