NTCACAPE3C90066A
ActiveVishay Dale
NTC ABS CAP 7X25 2K7 2% 500MM DOUBLE INSULATED PB-FREE
NTCACAPE3C90066A
ActiveVishay Dale
NTC ABS CAP 7X25 2K7 2% 500MM DOUBLE INSULATED PB-FREE
Description
General part information
NTCACAPE3C90066A

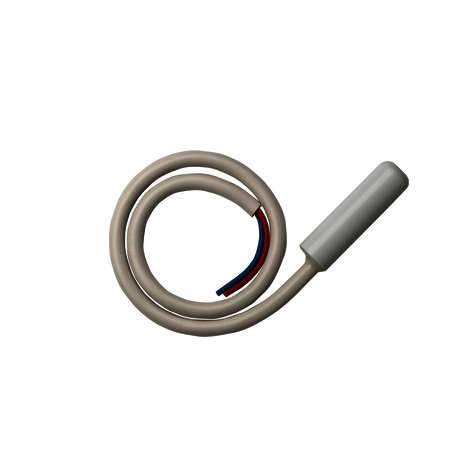

NTC Thermistor 2.7k Cylindrical Probe, Plastic
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCACAPE3C90066A |
|---|---|
| B Value (25/85) | 3984 K |
| B Value Tolerance | 0.5 % |
| Length - Lead Wire | 19.69 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Cylindrical Probe, Plastic |
| Power - Max | 150 mW |
| Resistance (Ohms) | 2.7 kOhm |
| Resistance Tolerance (%) | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
