RCWL1218R680JNEA
ActiveVishay Dale
RES THICK FILM 1218 0.68 OHM 5% 1W ±200PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200
RCWL1218R680JNEA
ActiveVishay Dale
RES THICK FILM 1218 0.68 OHM 5% 1W ±200PPM/°C PAD SMD T/R AUTOMOTIVE AEC-Q200
Description
General part information
RCWL1218R680JNEA

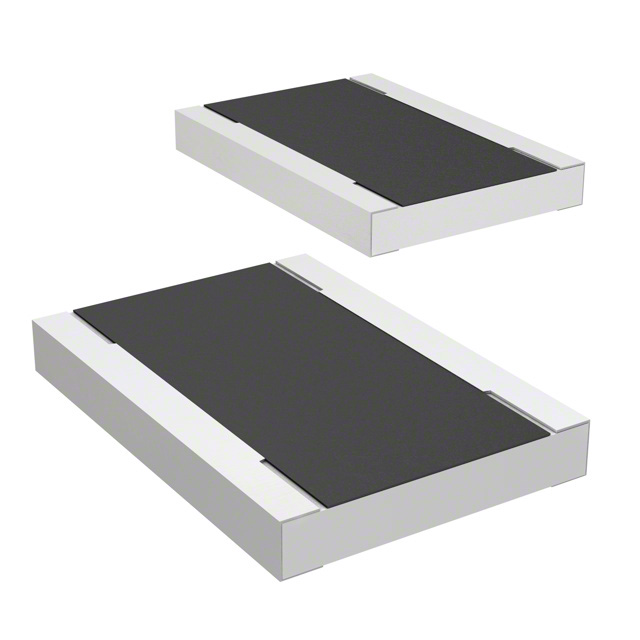

680 mOhms ±5% 1W Chip Resistor 1218 (3246 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCWL1218R680JNEA |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1218, Wide 1812 (4532 Metric), 1218 (3246 Metric) |
| Package Name | 1218 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 680 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.181 in |
| Supplier Device Package | 1218 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
