N370X-04M
ActiveEaton Tripp Lite
400G DUPLEX SINGLEMODE 9/125 OS2
N370X-04M
ActiveEaton Tripp Lite
400G DUPLEX SINGLEMODE 9/125 OS2
Description
General part information
N370X-04M

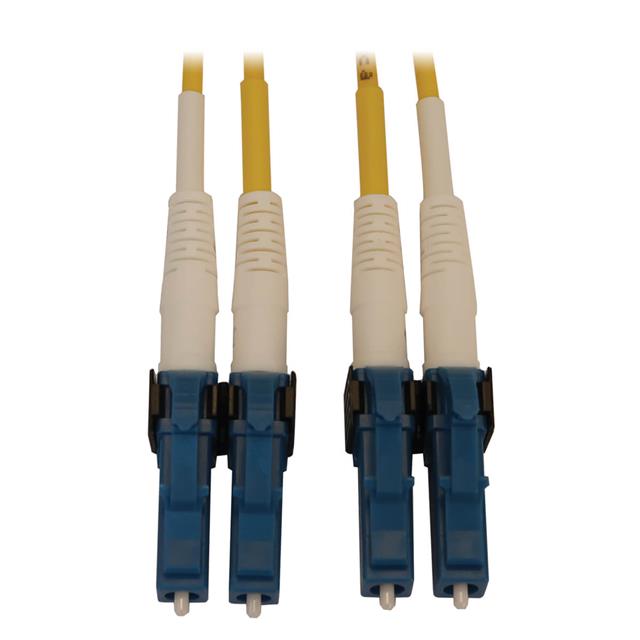

Cable Fiber Optic LC Duplex To LC Duplex 9/125 13.1' (4.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N370X-04M |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Bend Radius | 10 mm |
| Color - Cable | Yellow |
| Color - Connectors | Blue |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 13.1 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | OS2, Duplex, Singlemode |
