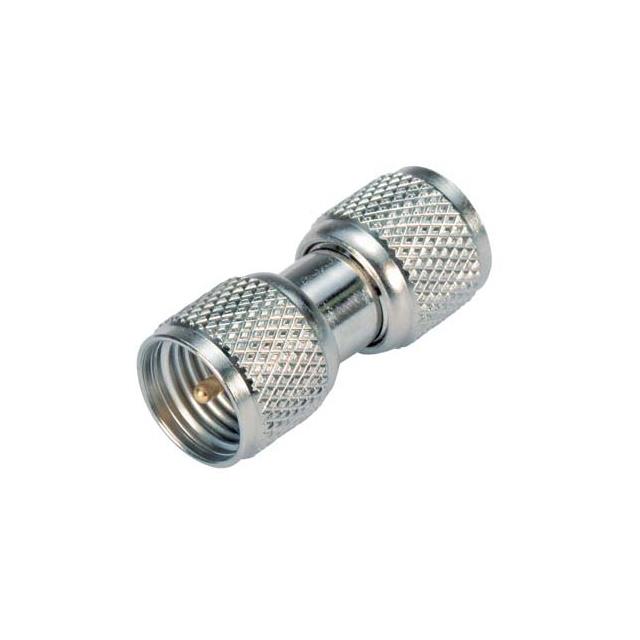

BA478
ActivePasternack
ADAPTOR MINI-UHF M/MINI-UHF M
BA478
ActivePasternack
ADAPTOR MINI-UHF M/MINI-UHF M
Description
General part information
BA478
Adapter Coaxial Connector UHF Mini Plug, Male Pin To UHF Mini Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA478 |
|---|---|
| Adapter Series | Mini to UHF, Mini, UHF |
| Adapter Type | Plug to Plug |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | UHF Mini Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | UHF Mini Plug |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Frequency - Max | 2.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
