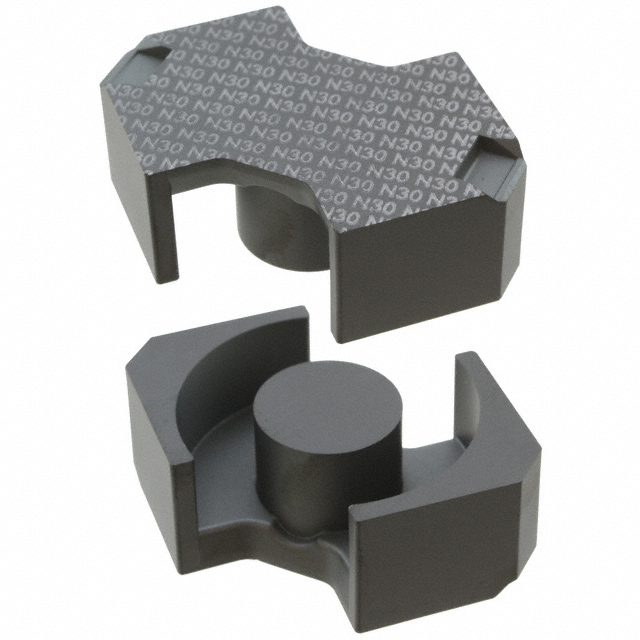

Specification	B65815E0000R030

Core Factor (ΣI/A) mm⁻¹	0.39 mm⁻¹
Core Type	RM
Effective Area (Ae)	146 mm²
Effective Length (le)	57 mm
Effective Magnetic Volume (Ve)	8320 mm³
Effective Permeability (µe)	2700
Finish	Uncoated
Gap	Ungapped
Height	0.484 in
Inductance Factor (Al)	8.7 µH
Initial Permeability (µi)	4300
Length	1.48 in
Material	N30
Minimum Core Cross Section (Amin) (mm²)	125 mm²
Package Name	RM 12
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.634 in
