TVP06B820CA-G

Active

Comchip Technology

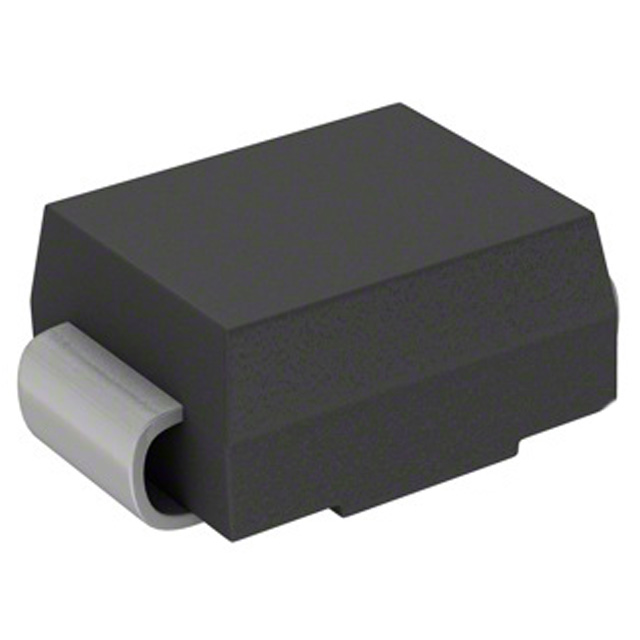

TVS DIODE DO214AA

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE DO214AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TVP06B820CA-G	TVP06B820 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	-	5.31 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SMB, DO-214AA	SMB, DO-214AA
Power - Peak Pulse	600 W	600 W
Power Line Protection	False	False
Supplier Device Package	SMB	SMB
Supplier Device Package	DO-214AA	DO-214AA
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min)	-	77.9 V
Voltage - Clamping (Max) @ Ipp	-	113 V
Voltage - Reverse Standoff (Typ)	-	70.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TVS DIODE DO214AA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power Line Protection	Applications	Supplier Device Package	Supplier Device Package	Type	Bidirectional Channels [custom]	Mounting Type	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]
Comchip Technology TVP06B820CA-G	-55 °C	150 °C	DO-214AA, SMB		General Purpose	SMB	DO-214AA	Zener	1	Surface Mount	600 W
Comchip Technology TVP06B820A-HF	-55 °C	150 °C	DO-214AA, SMB		General Purpose	SMB	DO-214AA	Zener		Surface Mount	600 W	70.1 V	77.9 V	5.31 A	113 V	1

General part information

Clamp Ipp Tvs Diode Surface Mount DO-214AA (SMB)
