Description
General part information

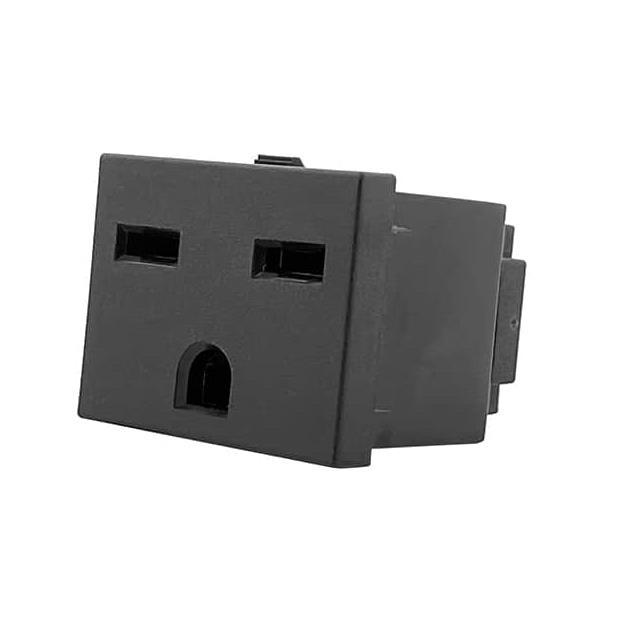

739W-X2/33
Power Connector Receptacle, Female Sockets NEMA 6-15R Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 739W-X2/33 |
|---|---|
| Approval Agency | cUL, UL |
| Connector Style | NEMA 6-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 15 A |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Panel Cutout Length | 31.5 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 24.5 mm |
| Panel Thickness (Max) | 0.071 in |
| Panel Thickness (Min) | 0.031 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.189 in |
| Voltage Rating | 250 V |
