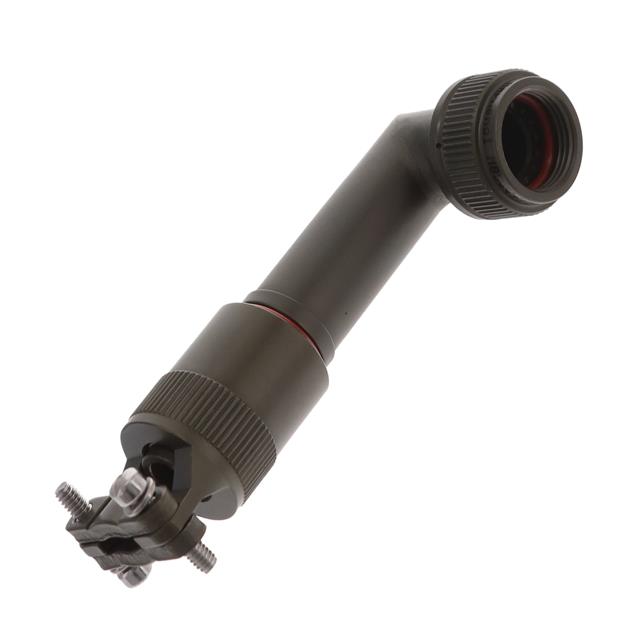

Specification	A850497911W02

Cable Exit Angle	90 °
Cable Opening (Max)	0.25 in
Cable Opening (Min)	0.13 in
Color	Olive Drab
Diameter - Outside	0.85 in
Features	Clamp Screws
For Use With/Related Products	IV, MIL-DTL-38999 Series III
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Primary Material	Metal
Shell Size - Insert	B, 11
Shielding	Shielded
Type	Cable Clamp, Backshell

M85049 Series

...

Part	Cable Exit Angle	Shell Size - Insert	Shell Size - Insert	Features	Color	Diameter - Outside	Type	Plating	Material	Cable Opening (Min)	Cable Opening (Max)	For Use With/Related Products	Thread Size	Ingress Protection	Primary Material	Shielding	Cable Opening
McGill Microwave Systems A850493915A	90 °	15	15	Clamp Screws	Black	1.28 in	Cable Clamp	Anodized	Aluminum Alloy	0.26 in	0.46 in
McGill Microwave Systems A8504952S14A	180 °		14	Clamp Screws Self-Locking	Black	1.26 in	Cable Clamp	Anodized	Aluminum Alloy	0.35 in	0.48 in	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I	7/8-20 UNEF
McGill Microwave Systems A8504952132W	180 °	32	32	Clamp Screws	Olive	2.218 in	Cable Clamp	Cadmium Nickel	Aluminum Alloy	0.88 in	1.25 in		2-18 UNS
McGill Microwave Systems A8504939S13N	90 °		13	Clamp Screws Self-Locking	Silver	1.16 in	Cable Clamp	Electroless Nickel	Aluminum Alloy	0.19 in	0.33 in	IV MIL-DTL-38999 Series III
McGill Microwave Systems A8504952S14A	180 °		14	Clamp Screws Self-Locking	Black	1.26 in	Cable Clamp	Anodized	Aluminum Alloy	0.35 in	0.48 in		7/8-20 UNEF
McGill Microwave Systems A850493925A	90 °		25	Clamp Screws	Black	1.89 in	Cable Clamp	Anodized	Aluminum Alloy	0.42 in	0.85 in	IV MIL-DTL-38999 Series III
McGill Microwave Systems A850491155W	180 °	28	28	Clamp Screws	Olive Drab	1.97 in	Backshell Cable Clamp	Cadmium	Aluminum Alloy	0.5 in	0.75 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		Environment Resistant	Metal	Unshielded
McGill Microwave Systems A850491283
McGill Microwave Systems A850491037W	180 °		20 37	Clamp Screws	Olive Drab	1.35 in	Backshell Cable Clamp	Cadmium	Aluminum Alloy	0.88 in	1.25 in			Environment Resistant	Metal	Shielded
McGill Microwave Systems A850496314W	90 °		12 14		Olive Drab	1.05 in	Cable Clamp	Cadmium	Aluminum Alloy			II MIL-DTL-38999 Series I			Metal	Unshielded	0.58 in
