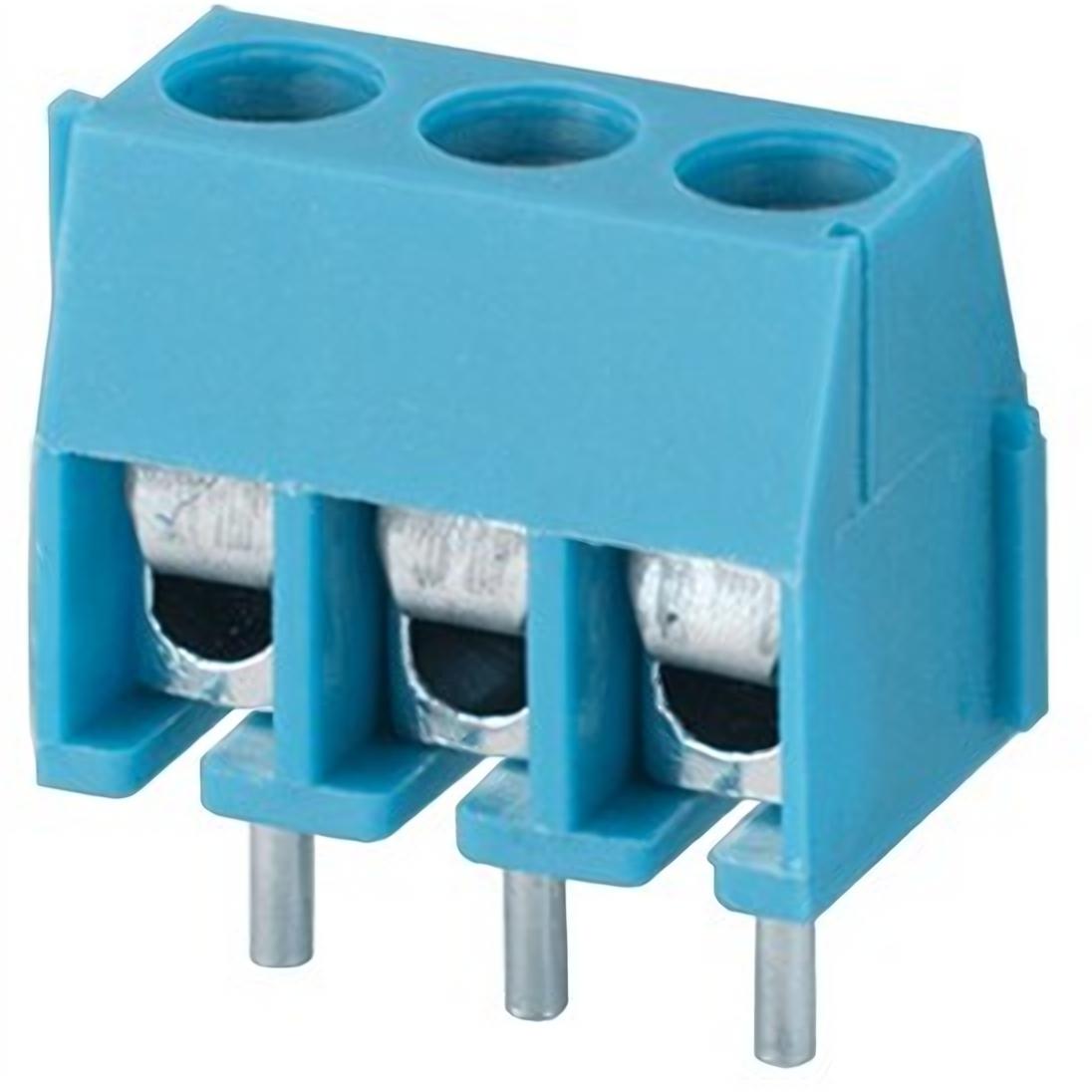

TB0011-350-03BE
ActiveSame Sky (Formerly CUI Devices)
TERRMINAL BLOCK, SCREW TYPE, HOR
TB0011-350-03BE
ActiveSame Sky (Formerly CUI Devices)
TERRMINAL BLOCK, SCREW TYPE, HOR
Description
General part information
TB0011-350-03BE
TERRMINAL BLOCK, SCREW TYPE, HOR
Technical Specifications
Parameters and characteristics for this part
| Specification | TB0011-350-03BE |
|---|---|
| Color | Blue |
| Current | 7 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
