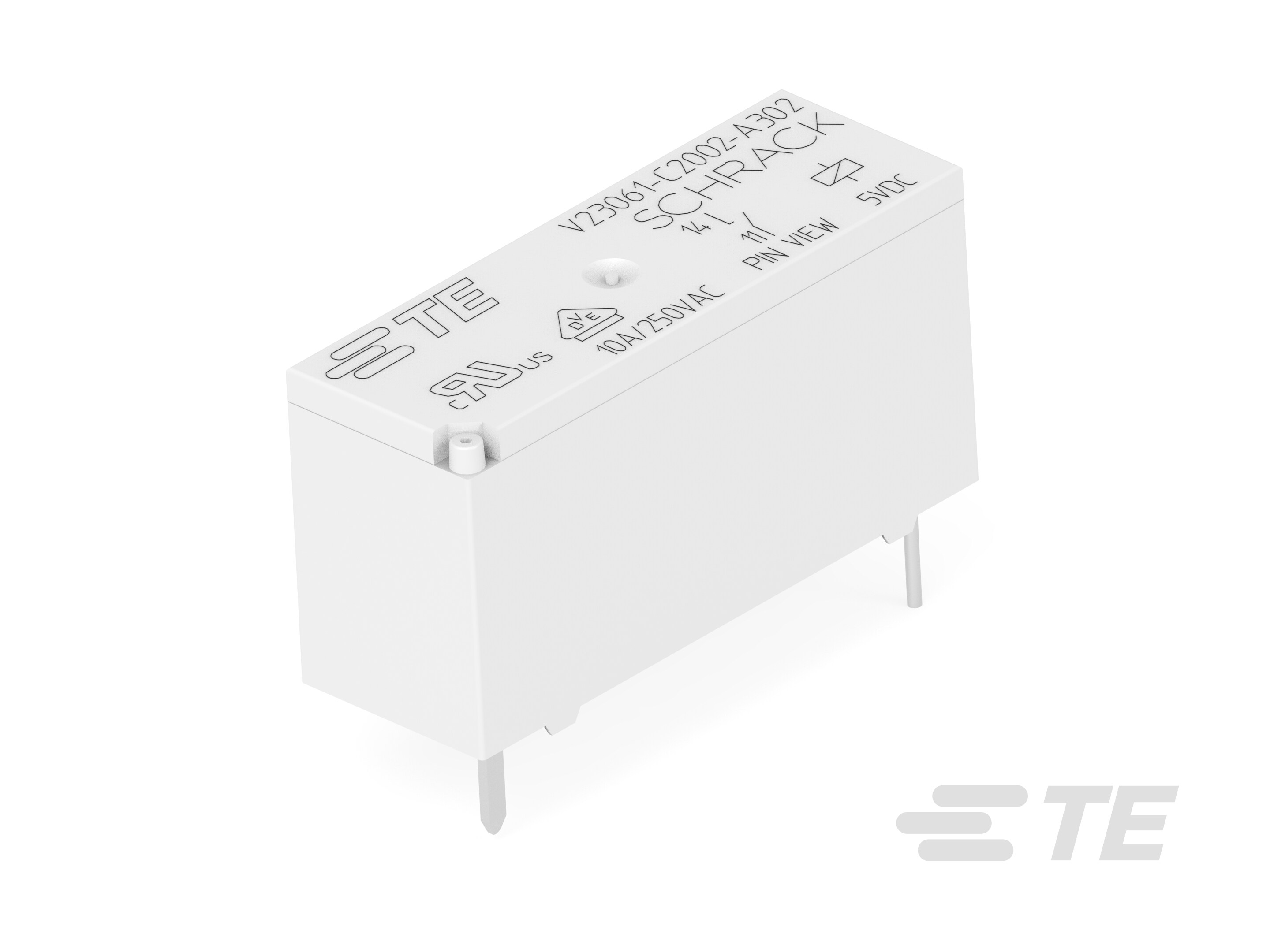

1-1416200-8
ActiveTE Connectivity AMP Connectors
V23061C2002A302
1-1416200-8
ActiveTE Connectivity AMP Connectors
V23061C2002A302
Description
General part information
1-1416200-8
General Purpose Power Relay, DC, Monostable, 1 Form A SPST-NO, 10 A Contact Rating, 5 VDC Coil Voltage, 250 VAC Contact Voltage, .212 W Coil Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1416200-8 |
|---|---|
| Approval Agency | VDE, cURus |
| Coil Current | 101.7 mA |
| Coil Insulation | Class F |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | SPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Form A Count | 1 |
| Load - Max Switching (Apparent Power) | 2000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.4 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Flux Protection, Sealed |
| Switching Voltage AC (Max) | 250 VAC |
| Termination Style | PC Pin |
