FMCA2242-100CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-4.3-10PLUG 3
FMCA2242-100CM
ActiveFairview Microwave
CBL ASSY 4.3-10PLUG-4.3-10PLUG 3
Description
General part information
FMCA2242-100CM

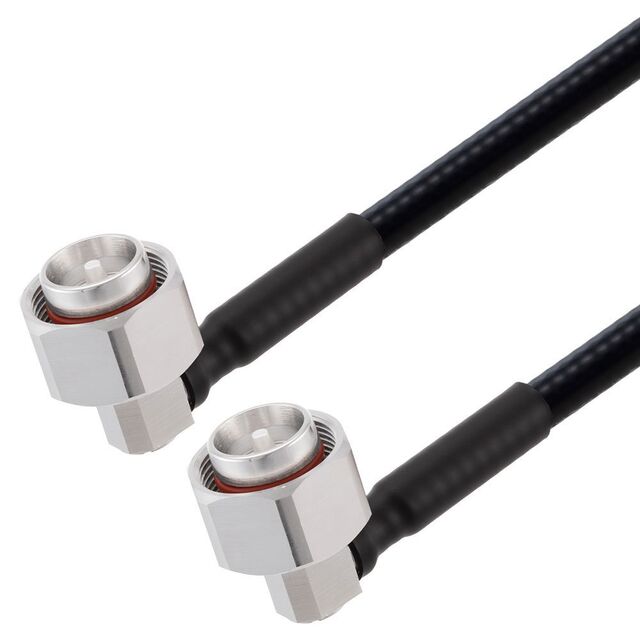

Cable Assembly Coaxial 4.3/10 to 4.3/10 0.250" Flexible Cable 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2242-100CM |
|---|---|
| 1st Connector | 4.3/10 Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | 4.3/10 Plug, Plug |
| 1st Connector Dimension (1) | 4.3 mm |
| 1st Connector Dimension (2) | 10 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 4.3/10 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.25 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.25 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.25 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 4.3/10 to 4.3/10 |
