2388171-2
ActiveTE Connectivity AMP Connectors
4POS,AMP MCP 6.3/4.8K,TAB HSG,UNSLD
2388171-2
ActiveTE Connectivity AMP Connectors
4POS,AMP MCP 6.3/4.8K,TAB HSG,UNSLD
Description
General part information
2388171-2

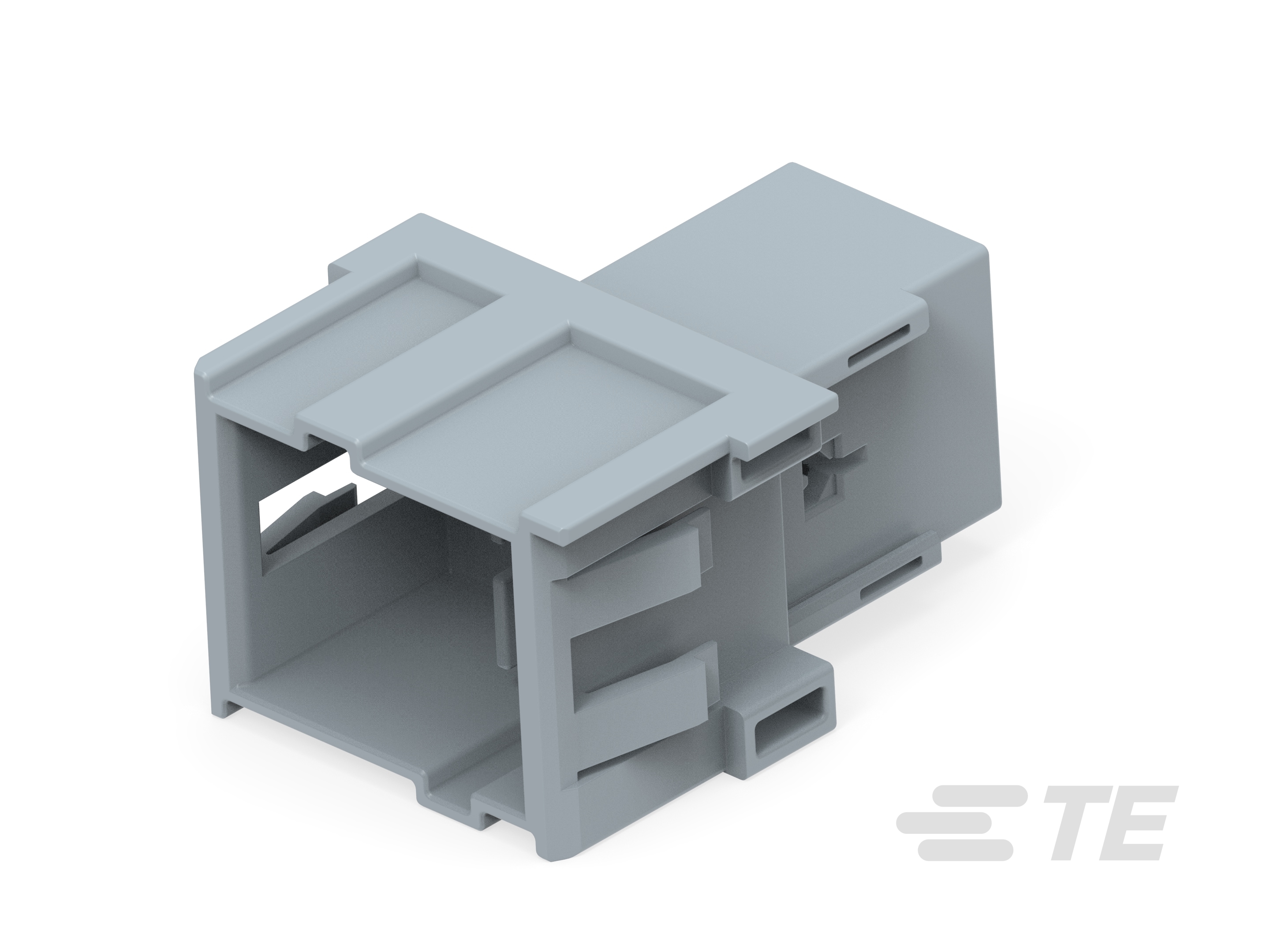

4 Position Housing, Housing for Male Terminals, Wire-to-Wire, 8 mm [.315 in] Centerline, Gray, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2388171-2 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Insulation Material | Nylon 6, Glass Filled, Polyamide (PA6) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.315 in |
