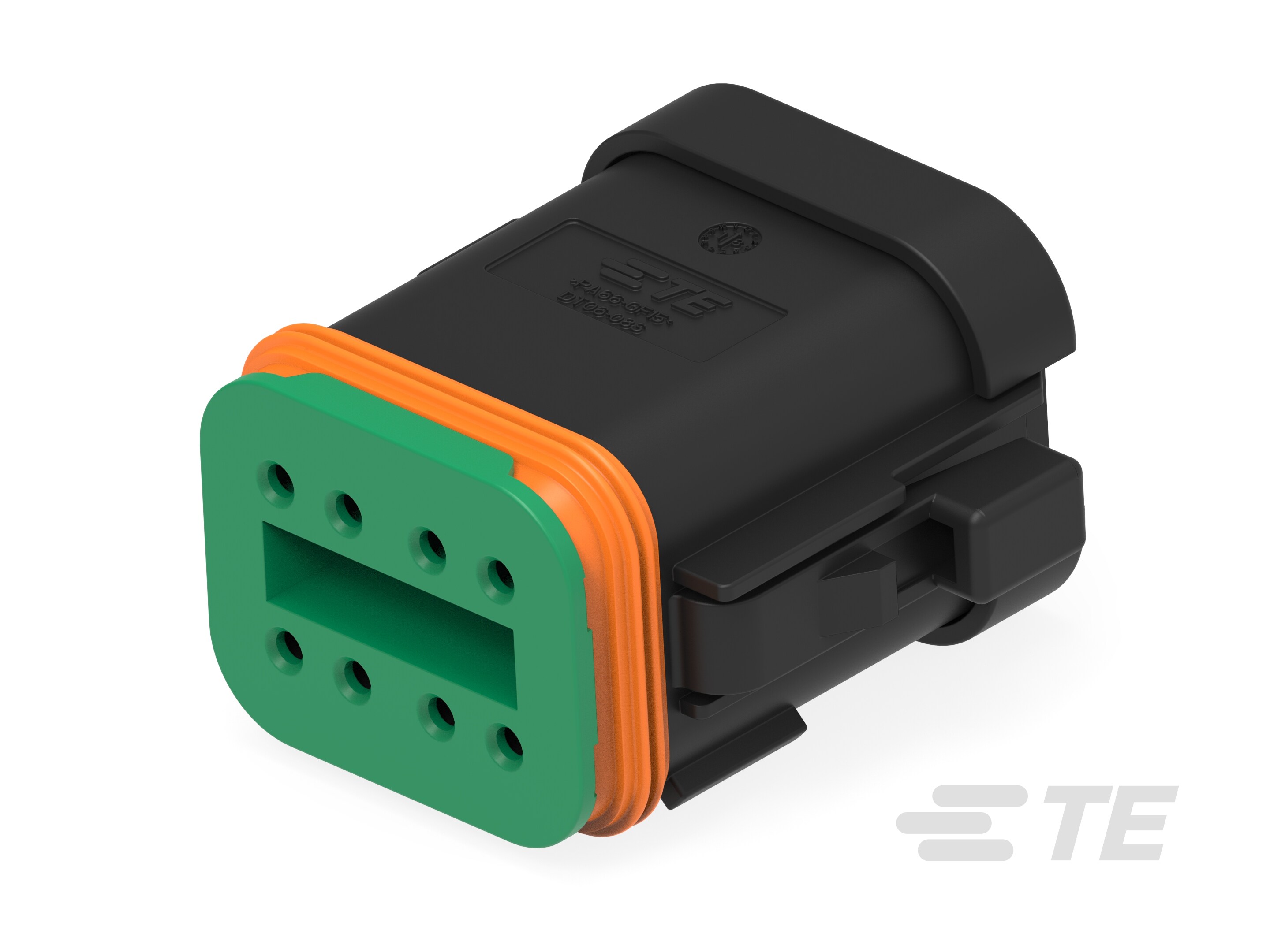

PLG, 8P, BLK, BLOCKED, B-DT06-08SB-C017

DT06-08SB-C017

Active
TE Connectivity AMP Connectors

PLG, 8P, BLK, BLOCKED, B

Find alt
PLG, 8P, BLK, BLOCKED, B-DT06-08SB-C017

DT06-08SB-C017

Active
TE Connectivity AMP Connectors

PLG, 8P, BLK, BLOCKED, B

Find alt

Description

General part information

DT06-08SB-C017

8 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.44 mm [.175 in] Centerline, Sealable, Black, Wire & Cable, Power

Technical Specifications

Parameters and characteristics for this part

SpecificationDT06-08SB-C017
ColorBlack
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
FeaturesBlocked Gasket, IP68, IP6K9K
Insulation MaterialNylon 6/6, Polyamide (PA66), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.359 in
Row Spacing0.175 in
