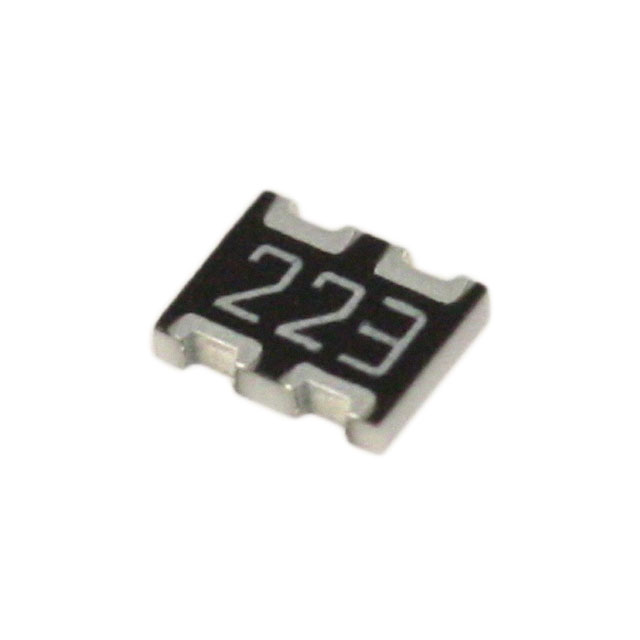

743C043223JP
ObsoleteCTS Resistor Products
RES ARRAY 2 RES 22K OHM 1008
743C043223JP
ObsoleteCTS Resistor Products
RES ARRAY 2 RES 22K OHM 1008
Description
General part information
743C043223JP
22k Ohm ±5% 100mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 1008, Concave, Long Side Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 743C043223JP |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.028 in |
| Mounting Type | Surface Mount |
| Number of Pins | 4 |
| Number of Resistors | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1008, Long Side Terminals, Concave |
| Power Per Element | 100 mW |
| Resistance | 22 kOhm |
| Size / Dimension Length | 0.1 in |
| Size / Dimension Width | 0.079 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
