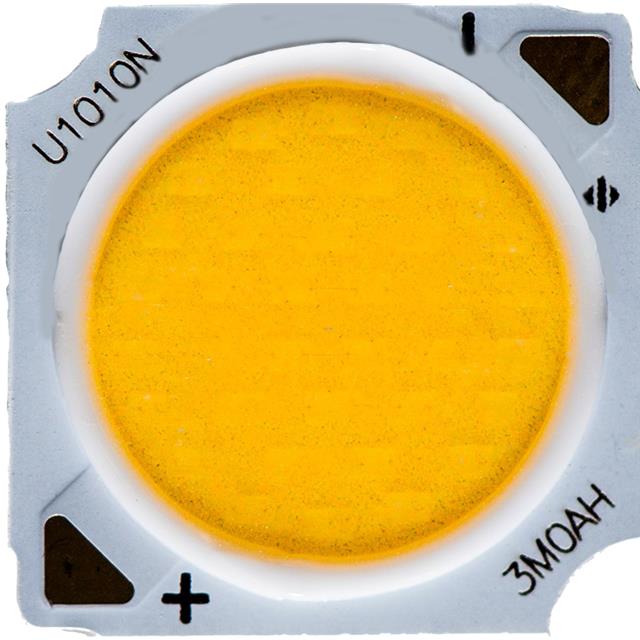

Specification	CMU1010-0000-000N0B0A30E

CCT (K)	3000 K
CCT Description	5-Step MacAdam Ellipse
Color	White, Warm
CRI (Color Rendering Index)	70
Current - Max	720 mA
Current - Test	270 mA
Flux (Typical)	1594 lm
Height - Seated (Max)	0.067 in
Lumens/Watt	175 lm/W
Mounting Type	Surface Mount
Package / Case	No Lead, 2-SMD
Size / Dimension Length	0.531 in
Size / Dimension Width	0.531 in
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1010 Series

...

Part	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Temperature - Test	Lens Type	Size / Dimension Width	Size / Dimension Length	Type	Light Emitting Surface (LES) Diameter	CRI (Color Rendering Index)	Current - Test	Configuration	CCT (K)	Height	Current - Max	Lumens/Watt	CCT Description	Luminous Flux (Typical)	Mounting Type	Flux (Typical)	Package / Case	Height - Seated (Max)
CreeLED, Inc. CMU1010-R160-00PN0U0A40H	33.7 V	115 °	Neutral White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	90	270 mA	Square	4000 K	1.5 mm	720 mA
CreeLED, Inc. CMU1010-R160-00PN0U0A30G	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	90	270 mA	Square	3000 K	1.5 mm	720 mA
CreeLED, Inc. CMU1010-R160-00PN0U0A35H	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	90	270 mA	Square	3500 K	1.5 mm	720 mA
CreeLED, Inc. CMU1010-R160-000N0H0A30H	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	80	270 mA	Square	3000 K	1.5 mm	720 mA	158 lm/W	2-Step MacAdam Ellipse	1439 lm
CreeLED, Inc. CMU1010-R160-00PN0Z0A35H	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	95	270 mA	Square	3500 K	1.5 mm	720 mA
CreeLED, Inc. CMU1010-R160-00PN0U0A27G	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	90	270 mA	Square	2700 K	1.5 mm	720 mA
CreeLED, Inc. CMU1010-0000-000N0H0A50G	33.7 V	115 °	Cool White			0.531 in	0.531 in			80	270 mA		5000 K		720 mA	164 lm/W	3-Step MacAdam Ellipse		Surface Mount	1491 lm	2-SMD No Lead	0.067 in
CreeLED, Inc. CMU1010-0000-000N0U0A30G	33.7 V	115 °	Warm White			0.531 in	0.531 in			90	270 mA		3000 K		720 mA	138 lm/W	3-Step MacAdam Ellipse		Surface Mount	1252 lm	2-SMD No Lead	0.067 in
CreeLED, Inc. CMU1010-R160-000N0H0A27H	33.7 V	115 °	Warm White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	80	270 mA	Square	2700 K	1.5 mm	720 mA	151 lm/W	2-Step MacAdam Ellipse	1378 lm
CreeLED, Inc. CMU1010-R160-000N0B0A40E	33.7 V	115 °	Neutral White	85 °C	Flat	13.5 mm	13.5 mm	Chip On Board (COB)	9.8 mm	70	270 mA	Square	4000 K	1.5 mm	720 mA	179 lm/W	5-Step MacAdam Ellipse	1633 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CMU1010-0000-000N0B0A30E | Datasheet
