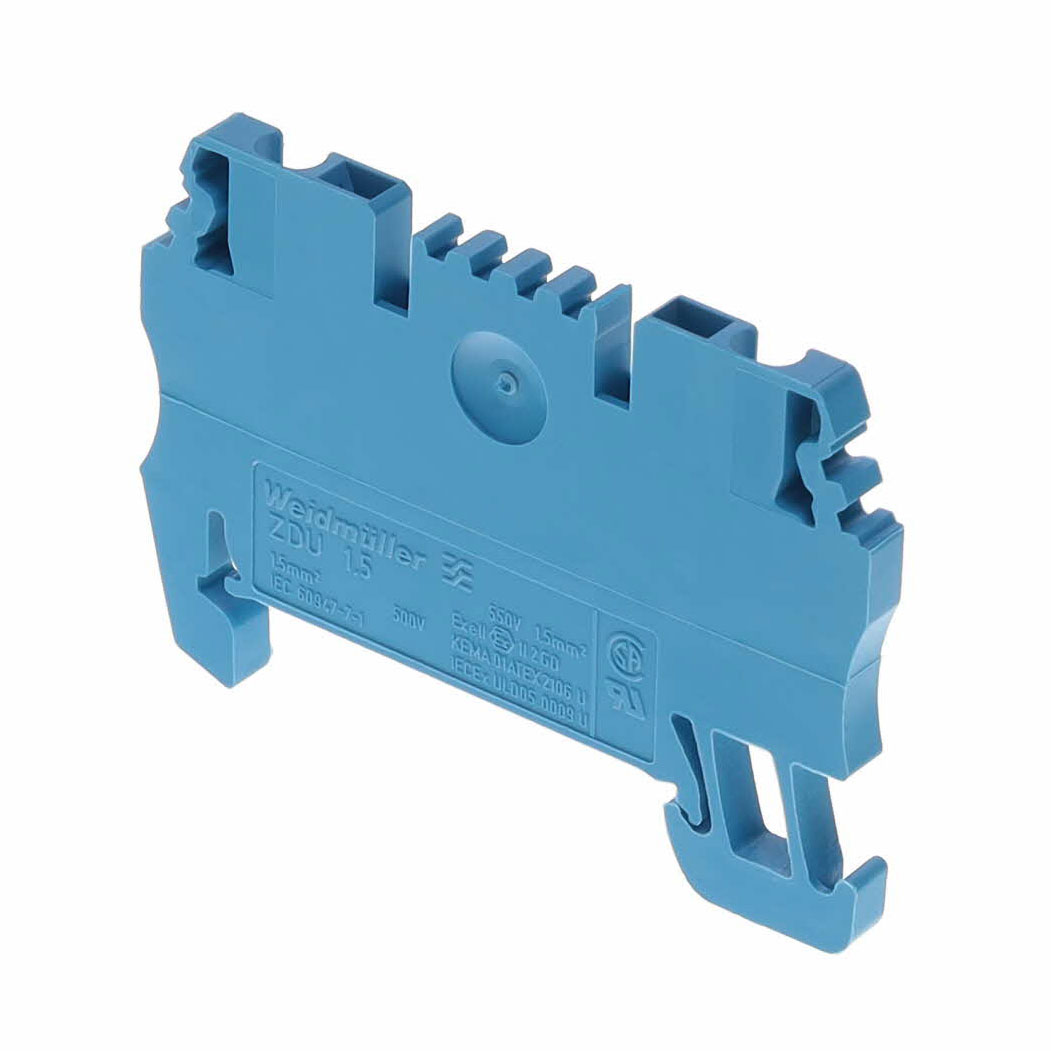

1775490000
ActiveWeidmüller
CONN TERM BLK FEED THRU 14-26AWG
1775490000
ActiveWeidmüller
CONN TERM BLK FEED THRU 14-26AWG
Description
General part information
1775490000
CONN TERM BLK FEED THRU 14-26AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1775490000 |
|---|---|
| Color | Blue |
| Current - IEC | 17.5 A |
| Current - UL | 15 A |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 3.5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
