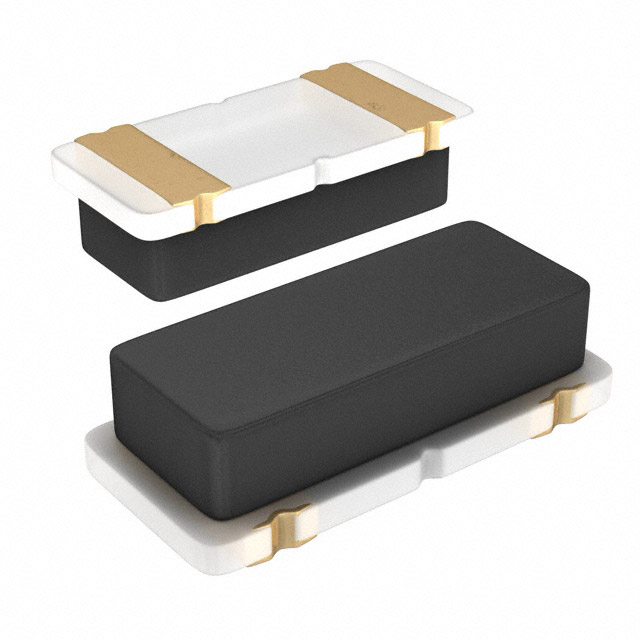

PBRC-20.00GR
ObsoleteKYOCERA AVX
CERAMIC RES 20.0000MHZ SMD
PBRC-20.00GR
ObsoleteKYOCERA AVX
CERAMIC RES 20.0000MHZ SMD
Description
General part information
PBRC-20.00GR
20 MHz Ceramic Resonator ±0.5% -40°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PBRC-20.00GR |
|---|---|
| Frequency | 20 MHz |
| Frequency Stability | 0.5 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, Non-Standard |
| Size / Dimension Length | 0.291 in |
| Size / Dimension Width | 0.134 in |
| Type | Ceramic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
