796690-5
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 5 POS 5MM SOLDER THRU-HOLE 17.5A/CONTACT BOX
796690-5
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 5 POS 5MM SOLDER THRU-HOLE 17.5A/CONTACT BOX
Description
General part information
796690-5

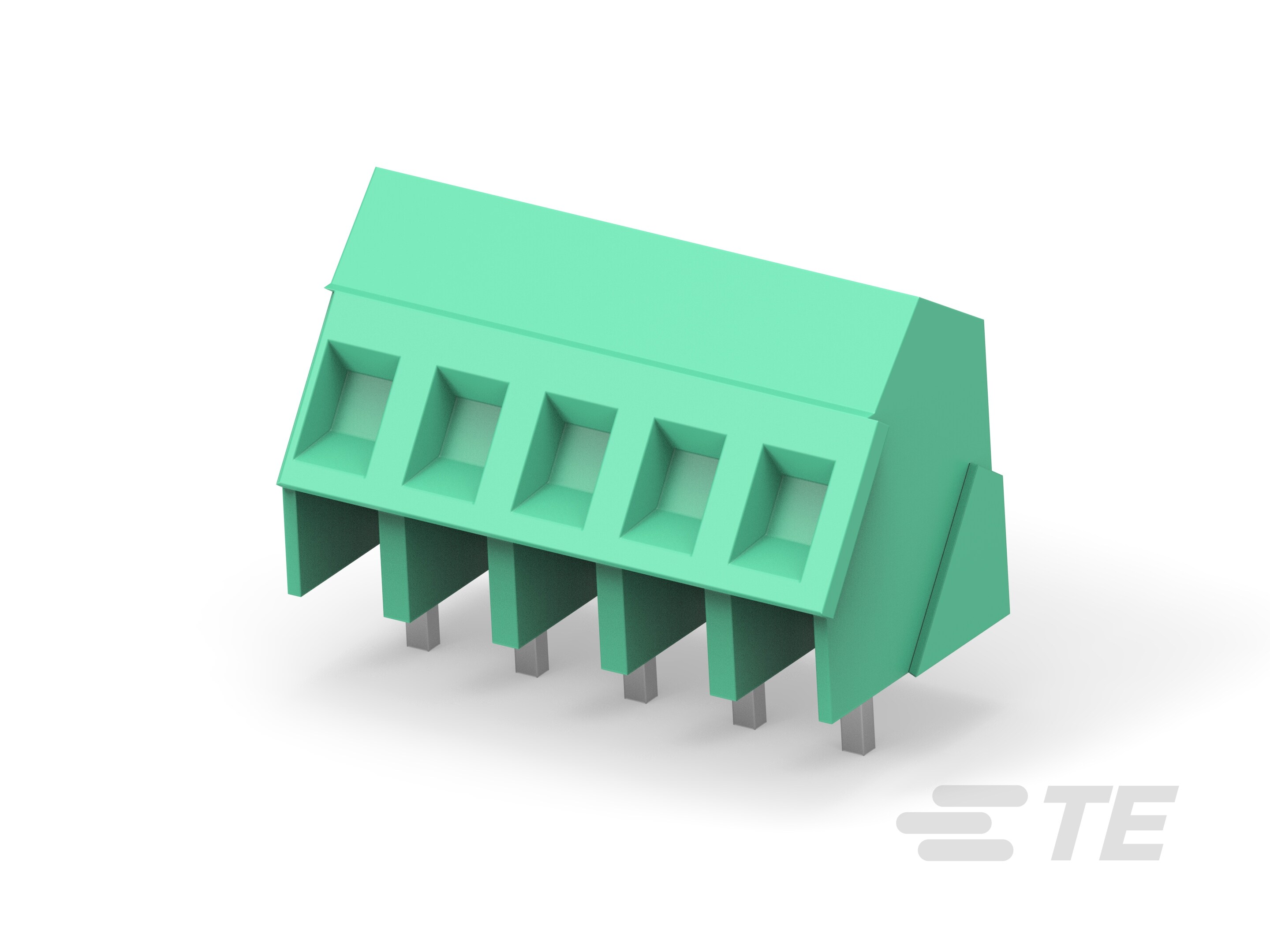

5 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 35° Wire Entry Angle, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 796690-5 |
|---|---|
| Color | Green |
| Current | 17.5 A |
| Features | Interlocking (Side) |
| Mating Orientation (Angle) | 35 ° |
| Mating Orientation (Angle) (Alternate) | 145 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
