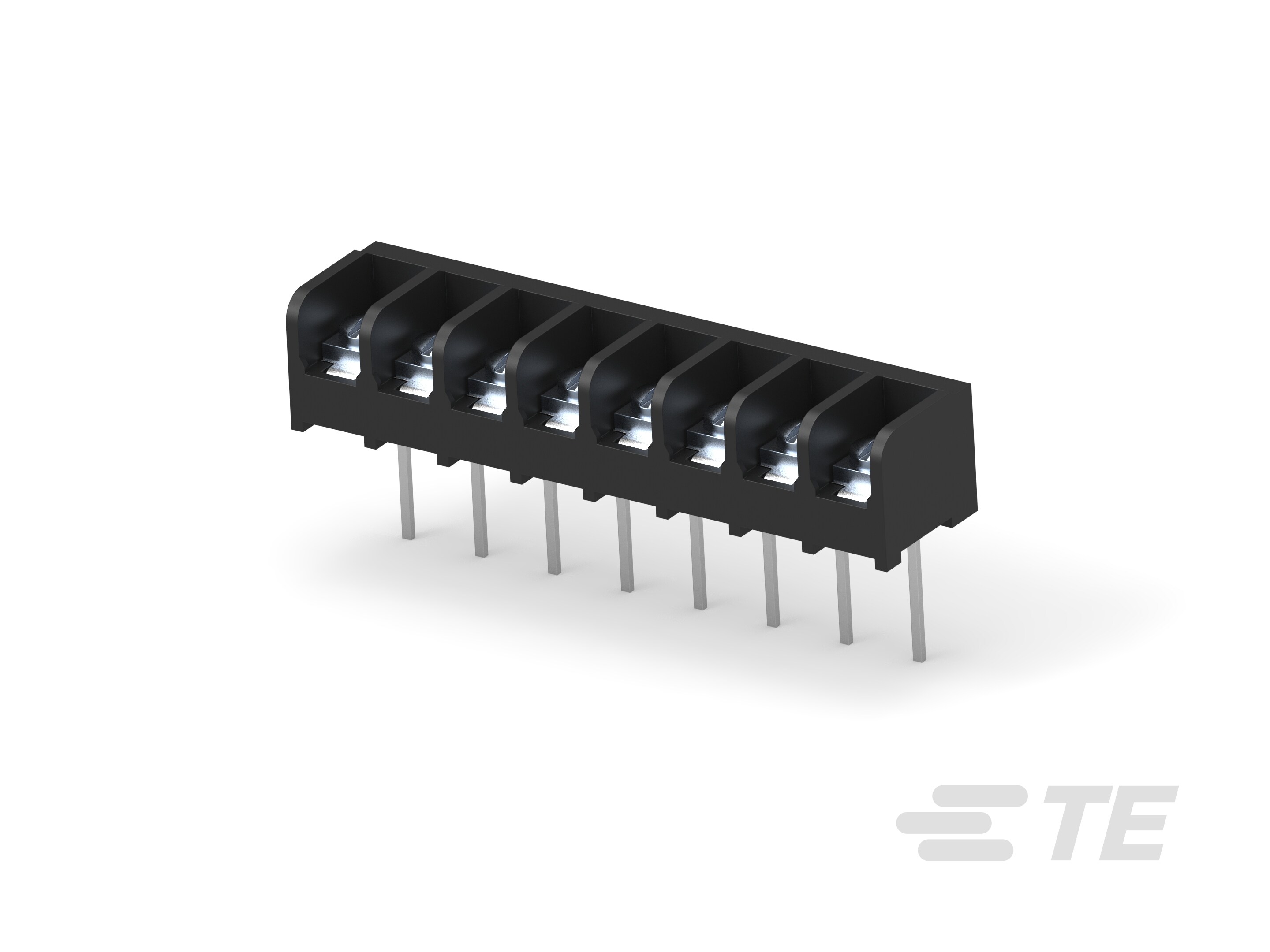

Specification	6WWV-08-008

Barrier Type	3 Wall (Tri)
Bottom Termination	Wire Wrap
Color	Black
Current Rating	25 A
Number of Circuits	8
Number of Rows	1
Number of Wire Entries	8
Pitch	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VAC/DC
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	12 AWG

BUCHANAN 6 Series Series

...

Part	Voltage Rating	Color	Number of Circuits	Pitch	Barrier Type	Number of Rows	Number of Wire Entries	Terminal Block Type	Top Termination	Bottom Termination	Current Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Screw Finish	Terminal Screw Material	Material - Insulation	Material Flammability Rating	Operating Temperature	Mounting Type	Features
TE Connectivity AMP Connectors 6PCV-04-007	300 VAC/DC	Black	4	0.375 in	3 Wall (Tri)	1	4	Barrier Block	Screws	PC Pin	25 A	12 AWG	22 AWG
TE Connectivity AMP Connectors 1546685-8	300 VAC/DC	Black	16	0.375 in	3 Wall (Tri)	1	16	Barrier Block	Screws with Captive Plate	PC Pin	25 A	12 AWG	22 AWG	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-0	105 °C	Through Hole
TE Connectivity AMP Connectors 6PCV-08-006	300 VAC/DC	Black	8	0.375 in	3 Wall (Tri)	1	8	Barrier Block	Screws	PC Pin	25 A	12 AWG	22 AWG
TE Connectivity AMP Connectors 6PCR-12-006	300 VAC/DC	Black	12	0.375 in	3 Wall (Tri)	1	12	Barrier Block	Screws with Captive Plate	PC Pin	25 A	12 AWG	22 AWG	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-0	105 °C	Through Hole
TE Connectivity AMP Connectors 6PCR-02-008	300 VAC/DC	Black	2	0.375 in	3 Wall (Tri)	1	2	Barrier Block	Screws with Captive Plate	PC Pin	25 A	12 AWG	22 AWG							Flange
TE Connectivity AMP Connectors 4-1546158-4	300 VAC/DC	Black	2	0.375 in	3 Wall (Tri)	1	2	Barrier Block	Screws	PC Pin	25 A	12 AWG	22 AWG							Positions Stamped
TE Connectivity AMP Connectors 6PCV-04-006	300 VAC/DC	Black	4	0.375 in	3 Wall (Tri)	1	4	Barrier Block	Screws	PC Pin	25 A	12 AWG	22 AWG
TE Connectivity AMP Connectors 6PCV-08-008	300 VAC/DC	Black	8	0.375 in	3 Wall (Tri)	1	8	Barrier Block	Screws with Captive Plate	PC Pin	25 A	12 AWG	22 AWG	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-0	105 °C	Chassis Panel Through Hole	Flange
TE Connectivity AMP Connectors 6PCV-09-006	300 VAC/DC	Black	9	0.375 in	3 Wall (Tri)	1	9	Barrier Block	Screws	PC Pin	25 A	12 AWG	22 AWG	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-0	105 °C	Through Hole
TE Connectivity AMP Connectors 6PCR-04-006	300 VAC/DC	Black	4	0.375 in	3 Wall (Tri)	1	4	Barrier Block	Screws with Captive Plate	PC Pin	25 A	12 AWG	22 AWG	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-0	105 °C	Through Hole
