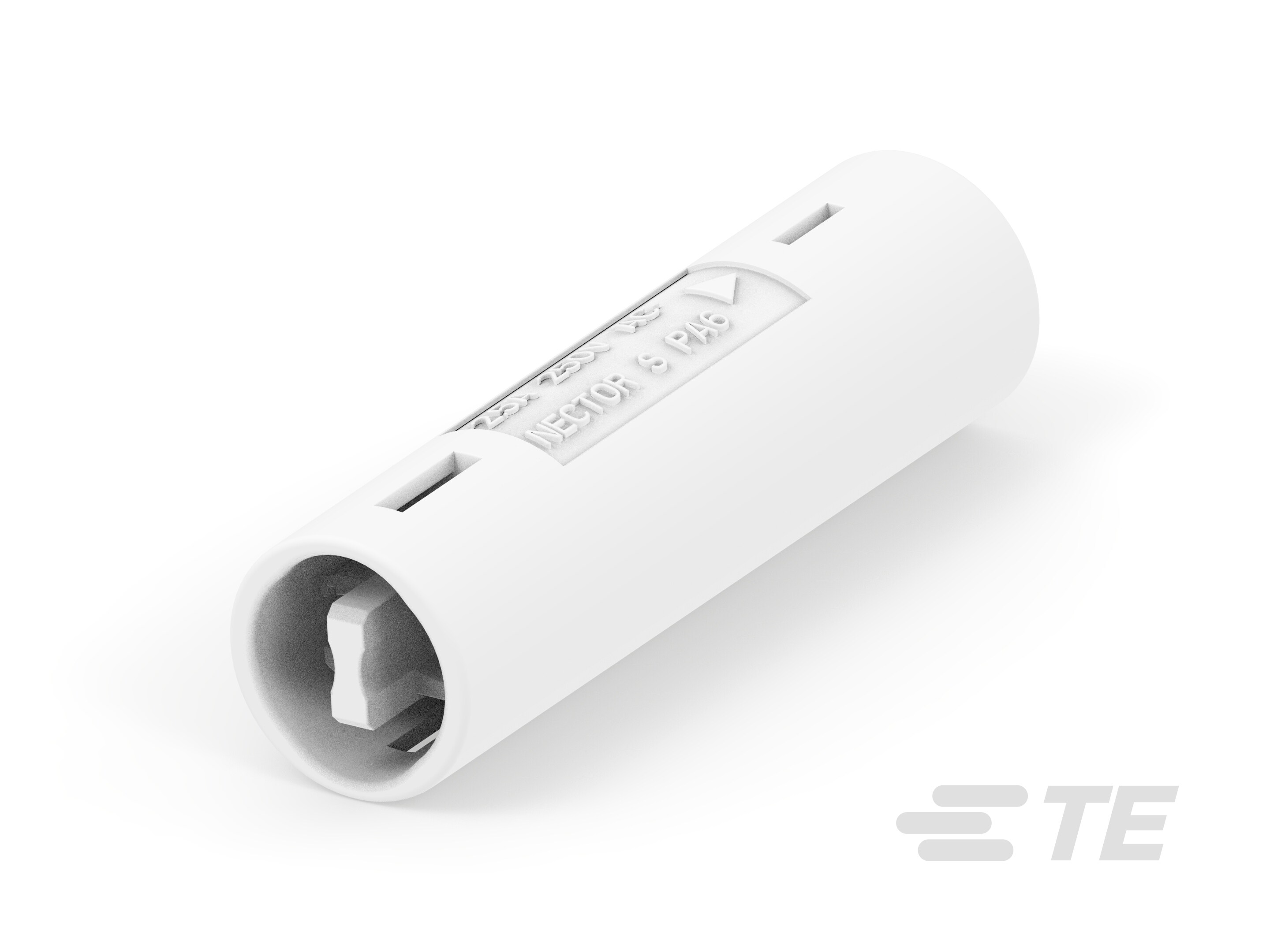

Specification	1740262-1

Connector Type	Outlet Housing for Pin Contact
Features	Keying HV-1
Housing Color	Natural
Housing Material	PA6, Nylon 6, Polyamide
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.142 in
Style	Cable/Wire, Cable/Wire or Board
Termination	Crimp

NECTOR S Series

...

Part	Voltage Rating	Housing Color	Style	Number of Positions	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Connector Type	Contact Material	Housing Material	Pitch	Features	Contact Finish	Color	Accessory Type	Material	For Use With/Related Products	Specifications	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Termination	Pin or Socket	Wire Gauge
TE Connectivity AMP Connectors 293308-2	250 V	Black	Board Cable/Wire	2	Solder	120 °C	-40 °C	Through Hole	Female Sockets Plug	Phosphor Bronze	Nylon 6/6 PA66 Polyamide	0.146 in	Board Guide Keying HV-1	Tin
TE Connectivity AMP Connectors 293388-5	125 V	White	Cable/Wire Cable/Wire or Board	2	Crimp	120 °C	-40 °C	Free Hanging (In-Line)	Plug Housing for Socket Contact				Keying LV-2
TE Connectivity AMP Connectors 1740261-1															White	Ring Clip	Nylon 6 Polyamide (PA6)	Tube
TE Connectivity AMP Connectors 293650-4		White	Cable/Wire	2		120 °C	-40 °C	Free Hanging (In-Line)	T-Splitter		Glass Filled PBT Polybutylene Terephthalate	0.146 in	Keying LV-2

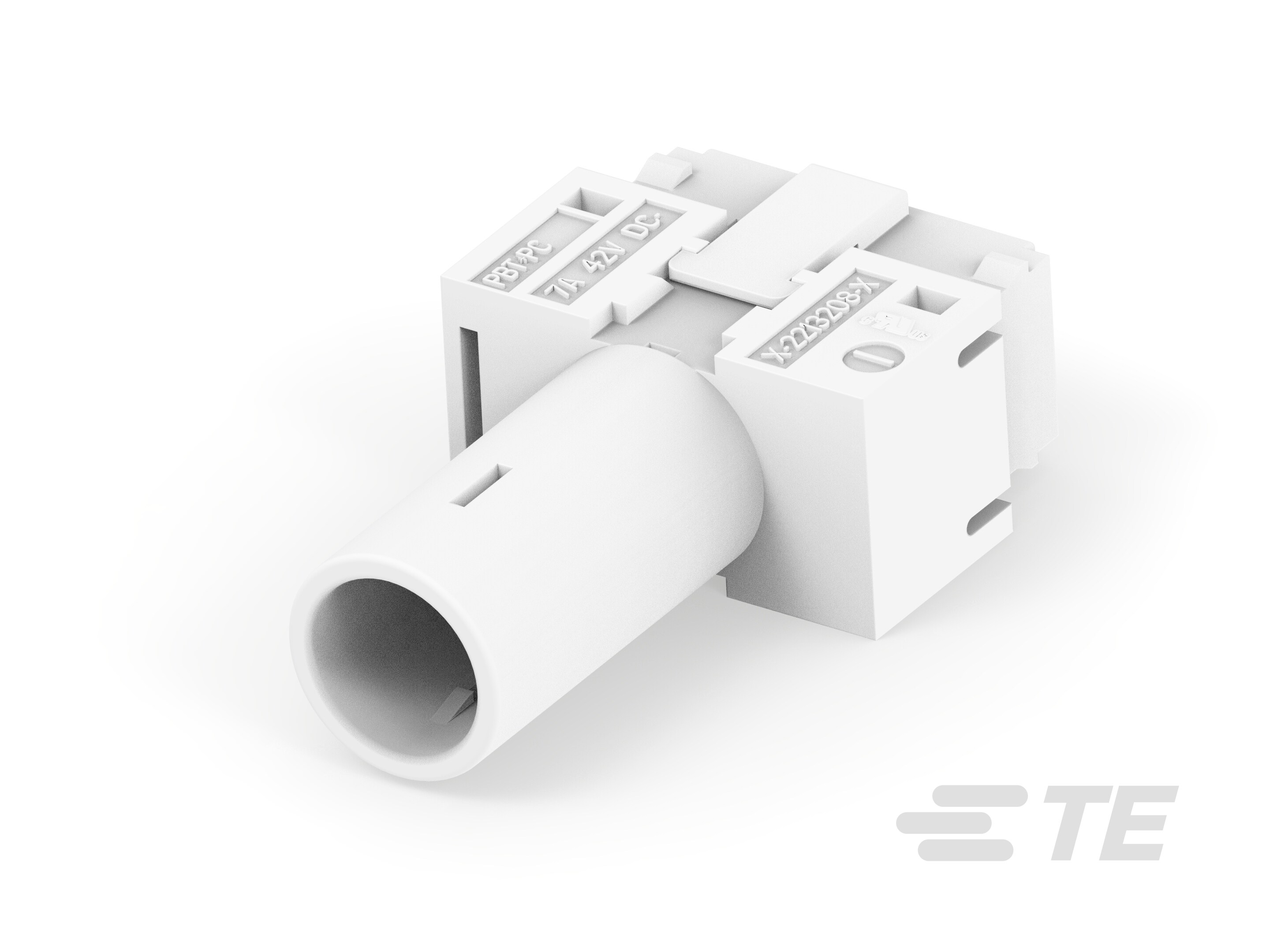

TE Connectivity AMP Connectors 7-2213222-4																Bus Bar	Polybutylene Terephthalate (PBT) Polycarbonate (PC)
TE Connectivity AMP Connectors 293286-1															White	Wall Outlet Frame

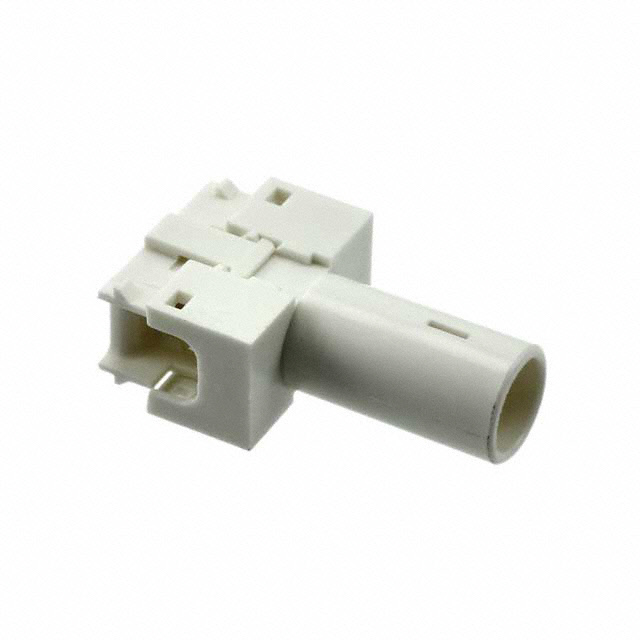

TE Connectivity AMP Connectors 293270-3															White	Bus Bar	Nylon Polyamide (PA)	7.5mm Connector	2 Positions Feed Through Keying HV-1
TE Connectivity AMP Connectors 1740336-4														Tin						18 AWG	20.5 AWG	Crimp	Socket
TE Connectivity AMP Connectors 293389-1			Cable/Wire Cable/Wire or Board	1	Crimp	120 °C	-40 °C	Free Hanging (In-Line)	Contact Pin	Copper Alloy				Tin										18 AWG

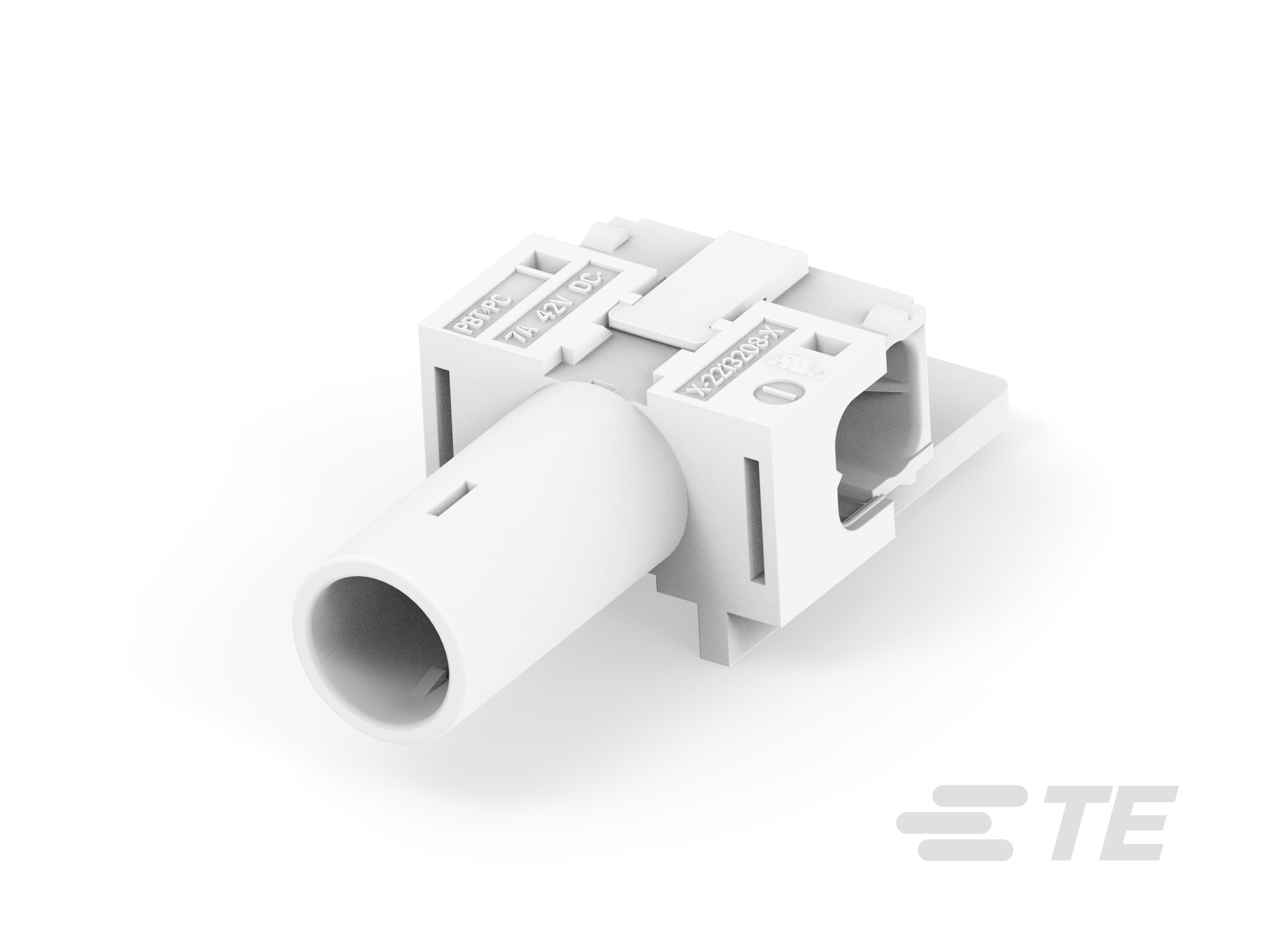

TE Connectivity AMP Connectors 2213222-4
