1.14001.5050000

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

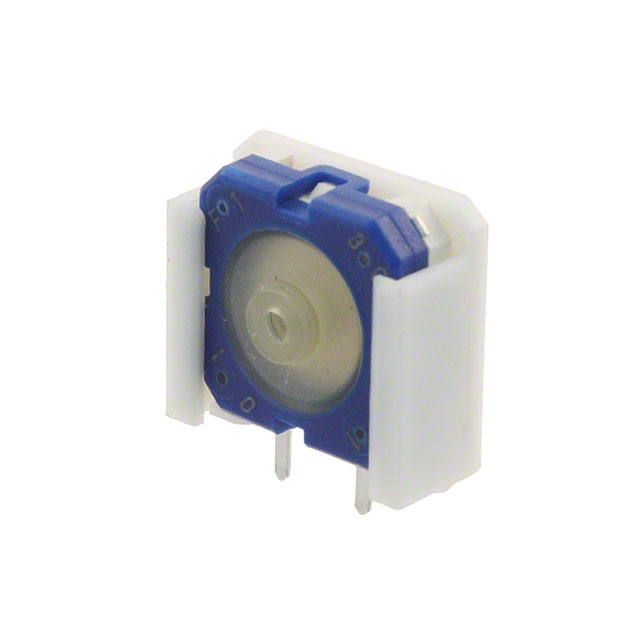

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.14001.5050000	1.14001 Series

	-	-
Actuator Height off PCB, Vertical	13.5 mm	4.95 - 13.5 mm
Actuator Orientation	Side Actuated	Top Actuated, Side Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A	0.1 - 42 VAC/DC
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Operating Force	360 gf	360 - 479 gf
Operating Temperature [Max]	90 °C	80 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	13.6 mm	12 - 13.6 mm
Outline [y]	13.5 mm	12 - 13.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	-	0.66 mm
Switch Travel [custom]	0.61 mm	0.61 mm
Termination Style	PC Pin	PC Pin, Gull Wing

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Actuator Orientation	Illumination	Outline [y]	Outline [x]	Switch Function	Actuator Type	Termination Style	Switch Travel [custom]	Mechanical Life	Circuit	Operating Force	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Switch Travel [custom]
RAFI USA 1.14001.8010000	Top Actuated	Non-Illuminated	12 mm	12 mm	Off-Mom	Standard	PC Pin	0.66 mm	1000000 Cycles	SPST-NO	479 gf	Through Hole	90 °C	-40 °C	4.95 mm	0.1 A, 35 VAC/DC
RAFI USA 1.14001.5050000	Side Actuated	Non-Illuminated	13.5 mm	13.6 mm	Off-Mom	Standard	PC Pin		1000000 Cycles	SPST-NO	360 gf	Through Hole, Right Angle	90 °C	-40 °C	13.5 mm	0.1 A, 42 VAC/DC	0.61 mm
RAFI USA 1.14001.8020000	Top Actuated	Non-Illuminated	12 mm	12 mm	Off-Mom	Standard	PC Pin	0.66 mm	1000000 Cycles	SPST-NO	479 gf	Through Hole	90 °C	-40 °C	4.95 mm	0.1 A, 35 VAC/DC
RAFI USA 1.14001.8030000	Top Actuated	Non-Illuminated	12 mm	12 mm	Off-Mom	Standard	Gull Wing	0.66 mm	1000000 Cycles	SPST-NO	479 gf	Surface Mount	90 °C	-40 °C	5.05 mm	0.1 A, 35 VAC/DC
RAFI USA 1.14001.6010000
RAFI USA 1.14001.5020000	Top Actuated	Non-Illuminated	12 mm	12 mm	Off-Mom	Standard	PC Pin		1000000 Cycles	SPST-NO	360 gf	Through Hole	80 C	-40 °C	4.95 mm	0.1 A, 42 VAC/DC	0.61 mm
