30-B-50-050

Active

Jonard Tools

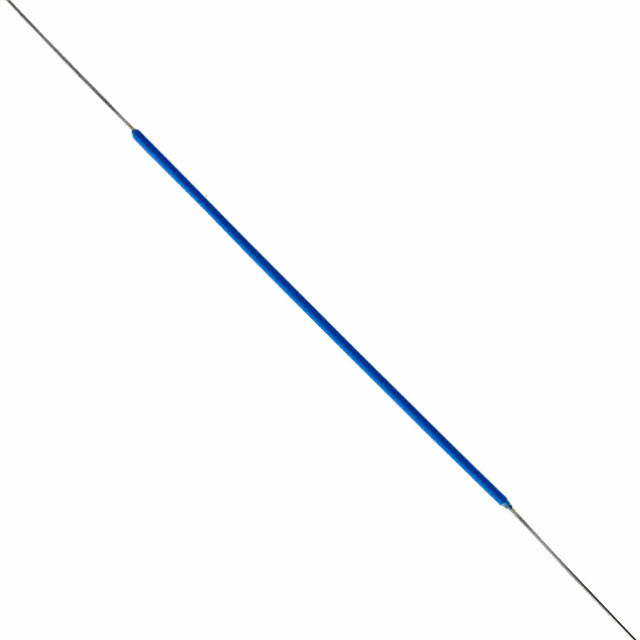

WIRE WW 30AWG PVDF BLUE 7" 50PC

Search across all available documentation for this part.

Active

Jonard Tools

WIRE WW 30AWG PVDF BLUE 7" 50PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30-B-50-050	30-B-50 Series

Conductor Diameter [diameter]	0.25 mm	0.25 mm
Conductor Diameter [diameter]	0.01 in	0.01 in
Conductor Material	Copper, Bare	Copper, Bare
Conductor Plating	Silver	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in	0.004 in
Jacket (Insulation) Thickness	0.09 mm	0.09 mm
Jacket Color	Blue	Blue
Length	7 in	3 - 7 "
Length	177.7 mm	76.2 - 177.7 mm
Length	0.583 ft	0.25 - 0.583 ft
Length	-	4 - 5 "
Length	-	101.6 - 127 mm
Length	-	0.333 - 0.417 '
Operating Temperature	105 C	105 C
Ratings	VW-1, UL Style 1423	VW-1, UL Style 1423
Wire Gauge	30 AWG	30 AWG

WIRE, WRAPPING WIRE, PRE CUT/STRIPPED, PVDF, BLUE, 30 AWG

Part	Conductor Material	Length	Length	Length	Ratings	Operating Temperature	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Wire Gauge	Conductor Plating	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Length [x]	Length [x]	Length [x]
Jonard Tools 30-B-50-010	Copper, Bare	3 "	76.2 mm	0.25 ft	UL Style 1423, VW-1	105 C	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	0.004 in	0.09 mm	Blue	30 AWG	Silver	0.25 mm	0.01 in
Jonard Tools 30-B-50-050	Copper, Bare	7 in	177.7 mm	0.583 ft	UL Style 1423, VW-1	105 C	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	0.004 in	0.09 mm	Blue	30 AWG	Silver	0.25 mm	0.01 in
Jonard Tools 30-B-50-030	Copper, Bare				UL Style 1423, VW-1	105 C	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	0.004 in	0.09 mm	Blue	30 AWG	Silver	0.25 mm	0.01 in	5 "	127 mm	0.417 '
Jonard Tools 30-B-50-020	Copper, Bare				UL Style 1423, VW-1	105 C	Polyvinylidene Fluoride (PVDF)	0.019 in	0.5 mm	0.004 in	0.09 mm	Blue	30 AWG	Silver	0.25 mm	0.01 in	4 "	101.6 mm	0.333 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG Blue Polyvinylidene Fluoride (PVDF) 0.583' (177.70mm, 7.00")
