PF2008 NA005

Active

ALPHA WIRE

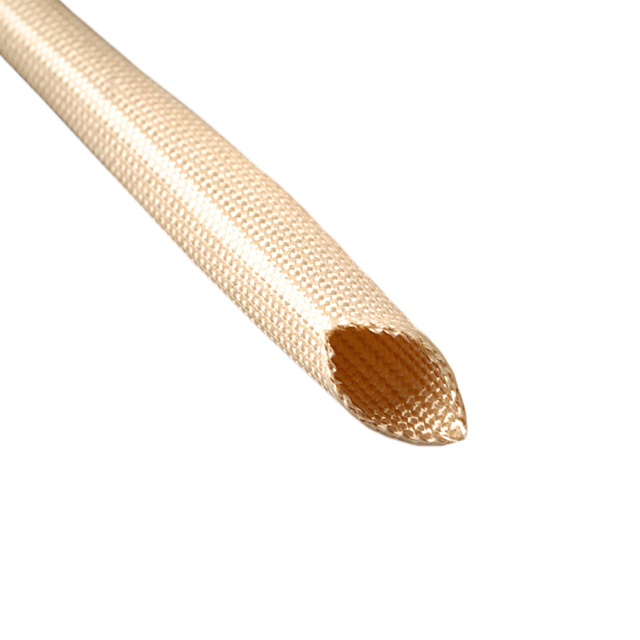

SLEEVING 0.129" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.129" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF2008 NA005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Natural
Diameter - Inside [diameter]	3.28 mm
Diameter - Inside [diameter]	0.129 in
Diameter - Outside [diameter]	4.5 mm
Diameter - Outside [diameter]	0.177 in
Environment Protection	Corrosion Resistant
Features	Clean Cut
Length	100 ft
Length	30.48 m
Material	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Type	Sleeving
Type Attributes	Braided
Wall Thickness	0.018 in
Wall Thickness	0.46 mm

SLEEVING 0.129" ID FBRGLASS 100'

Part	Type	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wall Thickness	Wall Thickness	Color	Abrasion Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type Attributes	Environment Protection	Material
ALPHA WIRE PF2008 NA005	Sleeving	100 ft	30.48 m	3.28 mm	0.129 in	0.018 in	0.46 mm	Natural	Abrasion Resistant, Fray Resistant	4.5 mm	0.177 in	UL VW-1	Clean Cut	200 °C	-70 °C	Braided	Corrosion Resistant	Fiberglass, Silicone Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Fiberglass, Silicone Coated Braided Sleeving 0.129" (3.28mm) 100' (30.48m)
