B0843R
ActiveElpress Inc.
CONN RING 0.25-0.75MM2 M4, 18AWG
B0843R
ActiveElpress Inc.
CONN RING 0.25-0.75MM2 M4, 18AWG
Description
General part information
B0843R

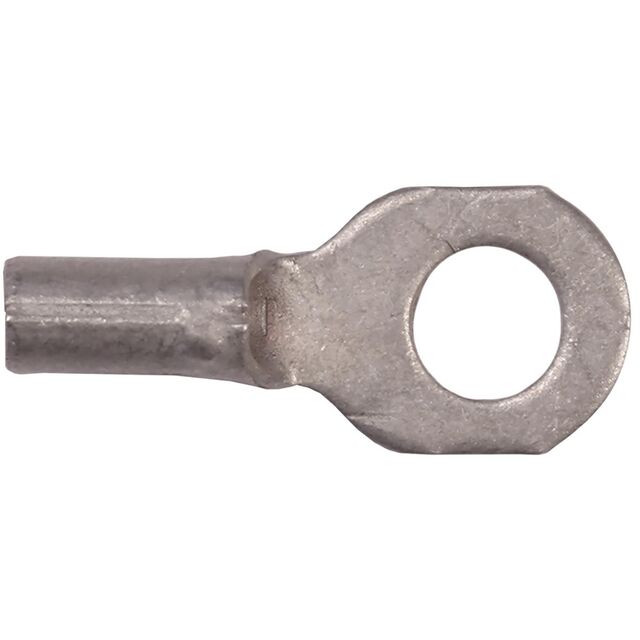

Ring Terminal Connector M4 Stud Circular 0.25 ~ 0.75mm² Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | B0843R |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.638 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud, M4 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.295 in |
| Wire Gauge (Cross-Sectional Area) (Max) | 0.75 mm² |
| Wire Gauge (Cross-Sectional Area) (Min) | 0.25 mm² |
