9964 0091000

Active

Belden Inc.

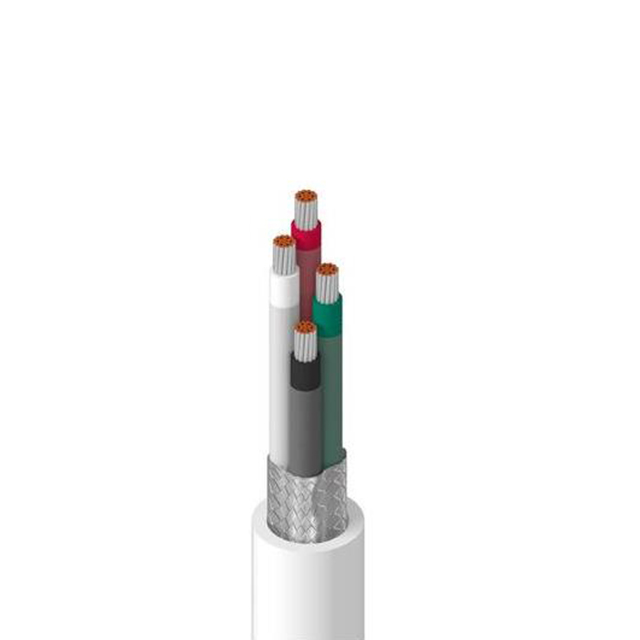

CABLE 4COND 20AWG WHT SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 20AWG WHT SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9964 0091000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Communications
Wire Gauge	20 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Conductor Insulation	Cable Type	Shield Coverage	Jacket (Insulation) Material	Shield Material	Shield Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
Belden Inc. 9964 009100	19	32 AWG	Copper Tinned	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	90 %	Poly-Vinyl Chloride (PVC)	Copper Tinned	Braid	20 AWG	-20 C	105 ░C	30.5 m	100 ft	5.74 mm	0.226 in	4	Communications	0.025 in	0.635 mm
Belden Inc. 9964 0091000	19	32 AWG	Copper Tinned	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	90 %	Poly-Vinyl Chloride (PVC)	Copper Tinned	Braid	20 AWG	-20 C	105 ░C			5.74 mm	0.226 in	4	Communications	0.025 in	0.635 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.84

General part information

4 Conductor Multi-Conductor Cable White 20 AWG Braid 1000.0' (304.8m)
