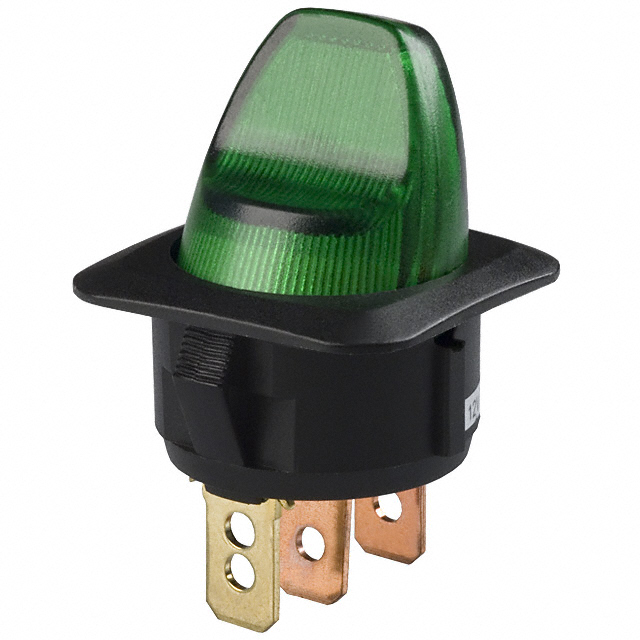

CLS-TS11A12250G

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 25A 12V

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SPST Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CLS-TS11A12250G	CLS-TS11 Series

Actuator Length [x]	17 mm	17 mm
Actuator Type	Flatted	Flatted
Circuit	SPST	SPST
Current Rating (Amps)	25 A	25 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Green	LED, Yellow, Green, Blue, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	24 mm	24 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 25A 12V

Part	Actuator Length [x]	Illumination Type, Color	Illumination	Circuit	Illumination Voltage (Nominal)	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Mounting Type	Current Rating (Amps)	Switch Function	Voltage Rating - DC
Lumex Opto/Components Inc. CLS-TS11A12250Y	17 mm	LED, Yellow	Illuminated	SPST	12 VDC	Quick Connect - 0.250" (6.3mm)	24 mm	Flatted	Panel Mount, Snap-In	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-TS11A12250G	17 mm	Green, LED	Illuminated	SPST	12 VDC	Quick Connect - 0.250" (6.3mm)	24 mm	Flatted	Panel Mount, Snap-In	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-TS11A12250B	17 mm	Blue, LED	Illuminated	SPST	12 VDC	Quick Connect - 0.250" (6.3mm)	24 mm	Flatted	Panel Mount, Snap-In	25 A	On-Off	12 V
Lumex Opto/Components Inc. CLS-TS11A12250R	17 mm	LED, Red	Illuminated	SPST	12 VDC	Quick Connect - 0.250" (6.3mm)	24 mm	Flatted	Panel Mount, Snap-In	25 A	On-Off	12 V
