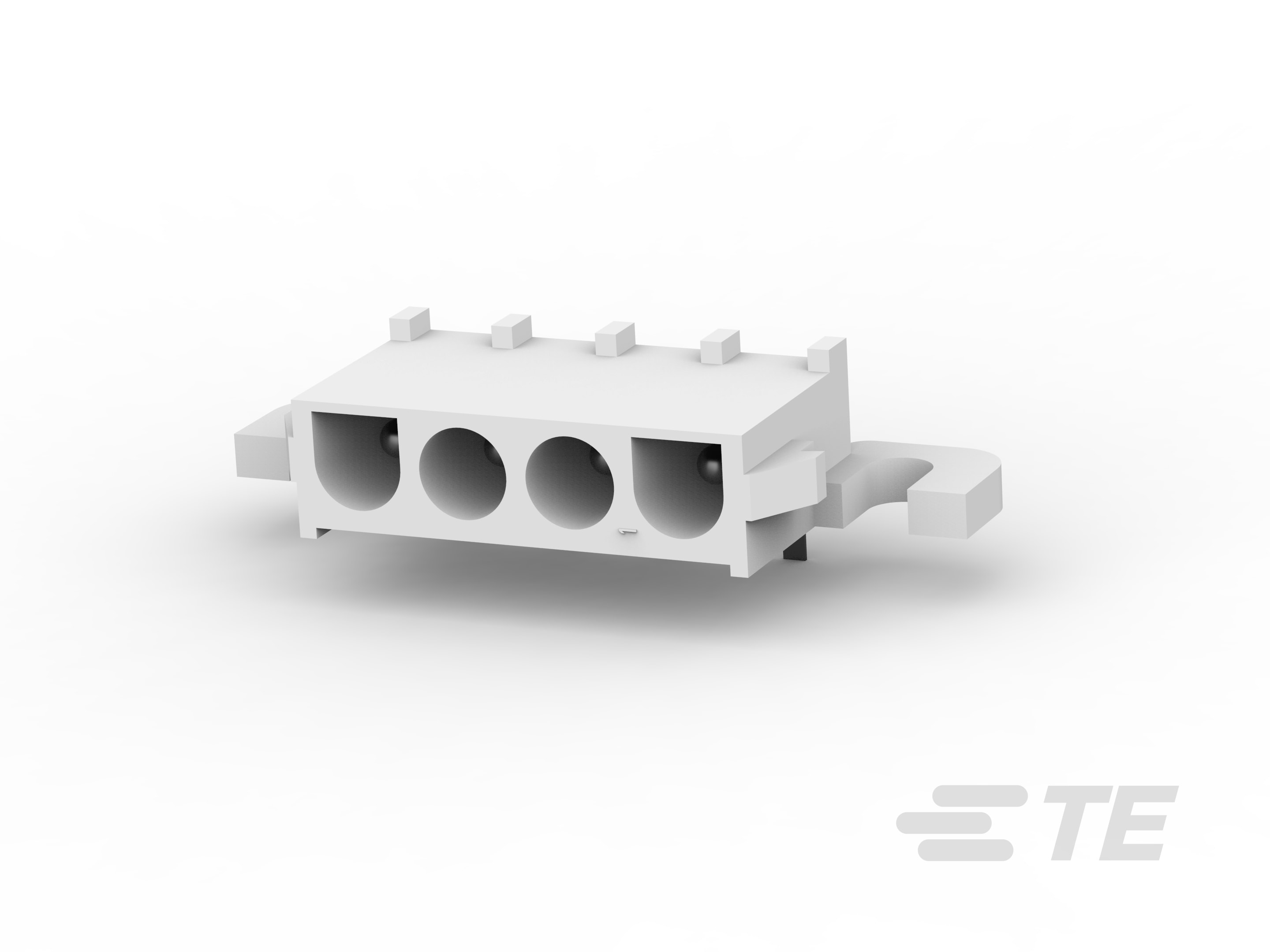

Specification	1-350948-0

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.16 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	12 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Color	White
Insulation Height	0.36 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V

Universal MATE-N-LOK Series

...
