TAB62335501-001
ActiveTE Connectivity AMP Connectors
SENSOR CABLES / ACTUATOR CABLES M12B2-FS-PUR-0.5M
TAB62335501-001
ActiveTE Connectivity AMP Connectors
SENSOR CABLES / ACTUATOR CABLES M12B2-FS-PUR-0.5M
Description
General part information
TAB62335501-001

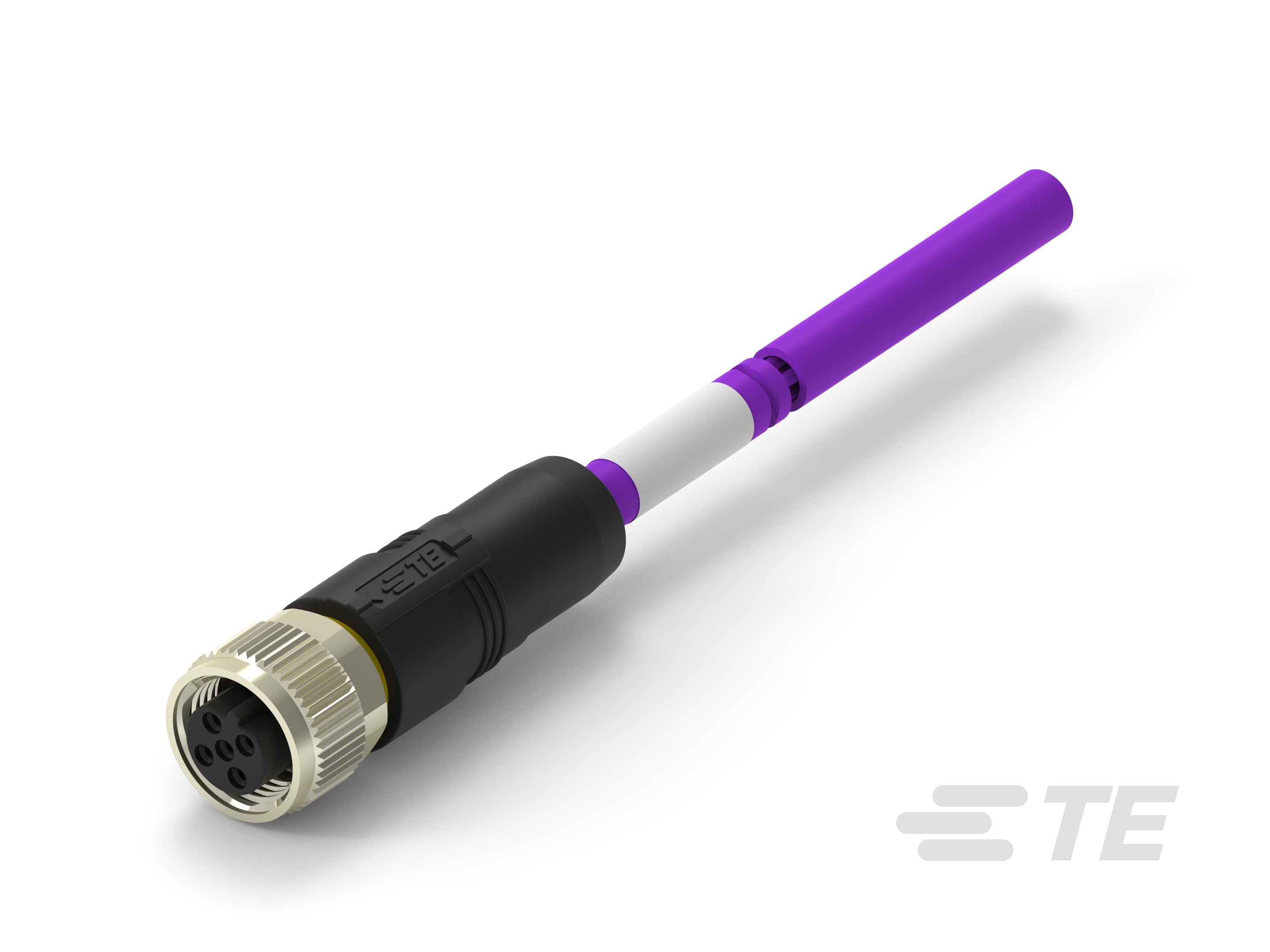

M12 Pigtail Cable Assembly, 2 Position, .5 m, Industrial Fieldbus, PROFIBUS, B Code, M12 Socket End A, Shielded, Single Ended, PA66+25GF
Technical Specifications
Parameters and characteristics for this part
| Specification | TAB62335501-001 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions Loaded | 2 positions |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Violet |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 1.64 ft |
| Shielding | Shielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
