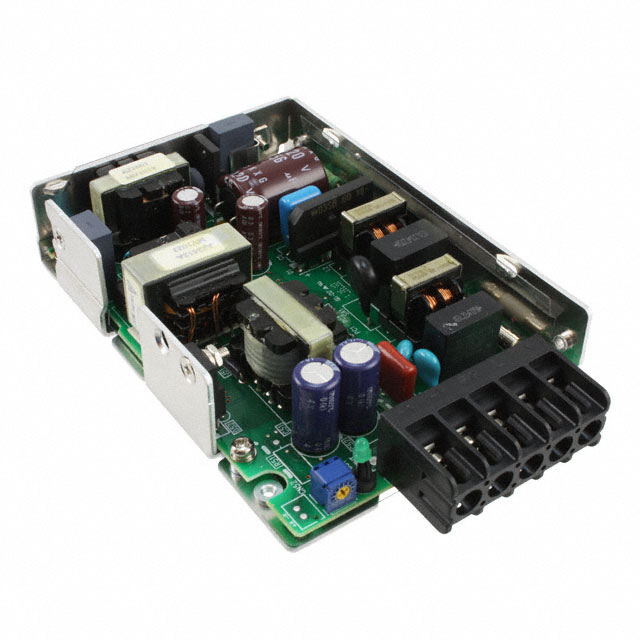

HWS50-5/HD
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 50W
HWS50-5/HD
ObsoleteTDK Corporation
AC/DC CONVERTER 5V 50W
Description
General part information
HWS50-5/HD
Open Frame, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HWS50-5/HD |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 10 A |
| Efficiency | 84 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 50 W |
| Size / Dimension Height | 3.23 in |
| Size / Dimension Length | 4.72 in |
| Size / Dimension Width | 1.04 in |
| Type | Conformal Coated, Open Frame |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
