Description
General part information
NX-G81YAR-P08WFG0-000L

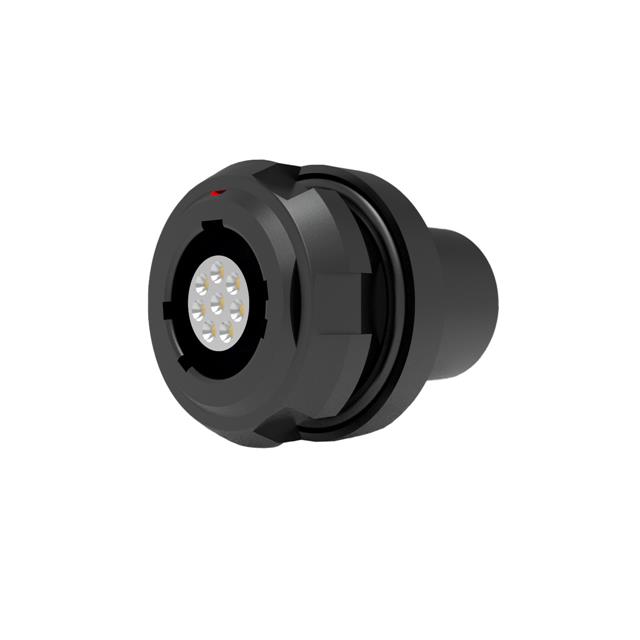

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | NX-G81YAR-P08WFG0-000L |
|---|---|
| Cable Opening | 0.472 in |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 7 A |
| Fastening Type | Push-Pull |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Polyetheretherketone, PEEK |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -51 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum Alloy |
| Shielding | Shielded |
| Termination | Solder Cup |
| Voltage Rating | 333 V |
