1-1563144-1
ActiveTE Connectivity AMP Connectors
3POS,TAB 0.63X0.64,HEADER ASSY,BK
1-1563144-1
ActiveTE Connectivity AMP Connectors
3POS,TAB 0.63X0.64,HEADER ASSY,BK
Description
General part information
1-1563144-1

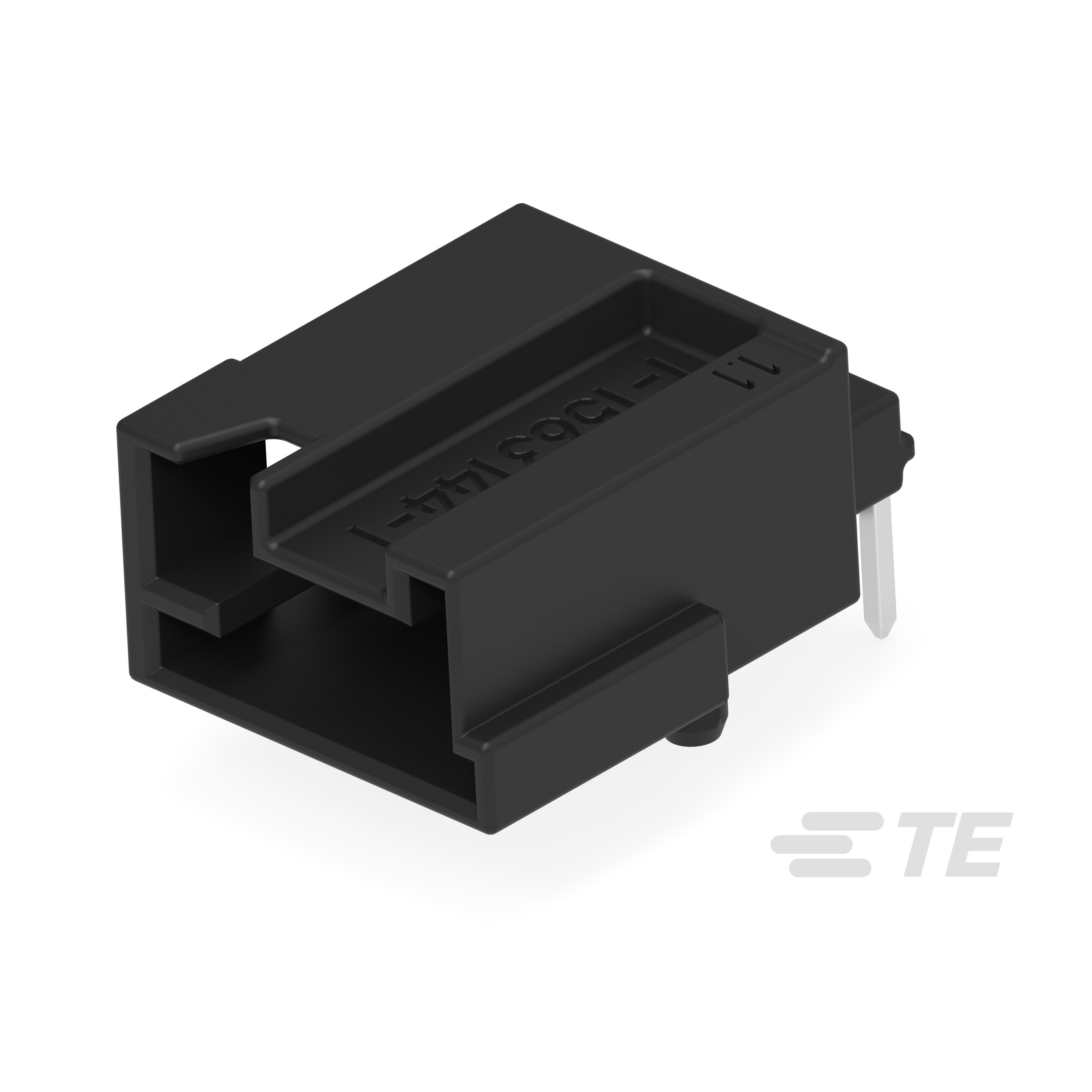

Horizontal, Wire-to-Board, 3 Position, 1 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, Black, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1563144-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.232 in |
| Contact Length - Post | 0.132 in |
| Contact Material | Copper Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.327 in |
| Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
