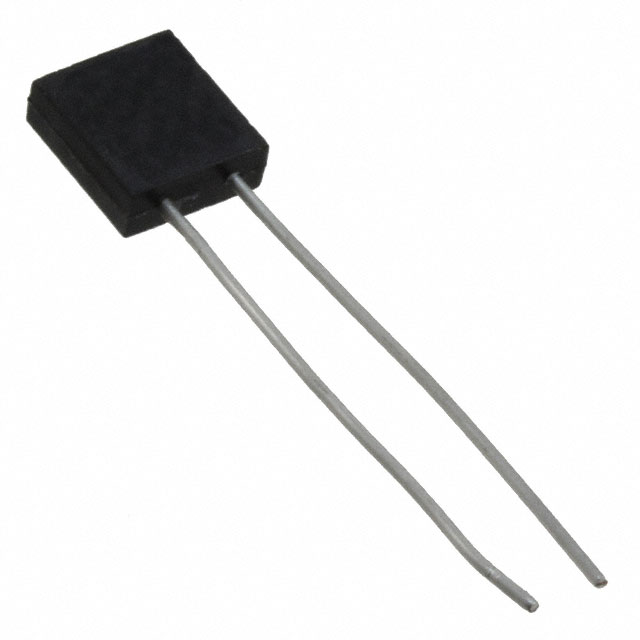

SM10-10KX
ActiveBourns Inc.
RES 10K OHM 0.01% 0.3W RADIAL
SM10-10KX
ActiveBourns Inc.
RES 10K OHM 0.01% 0.3W RADIAL
Description
General part information
SM10-10KX
10 kOhms ±0.01% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | SM10-10KX |
|---|---|
| Composition | Wirewound |
| Features | Non-Inductive, Moisture Resistant, Safety, Flame Proof |
| Height - Seated (Max) | 0.344 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 300 mW |
| Resistance | 10 kOhm |
| Size / Dimension Length | 0.299 in |
| Size / Dimension Width | 0.102 in |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
