Description
General part information

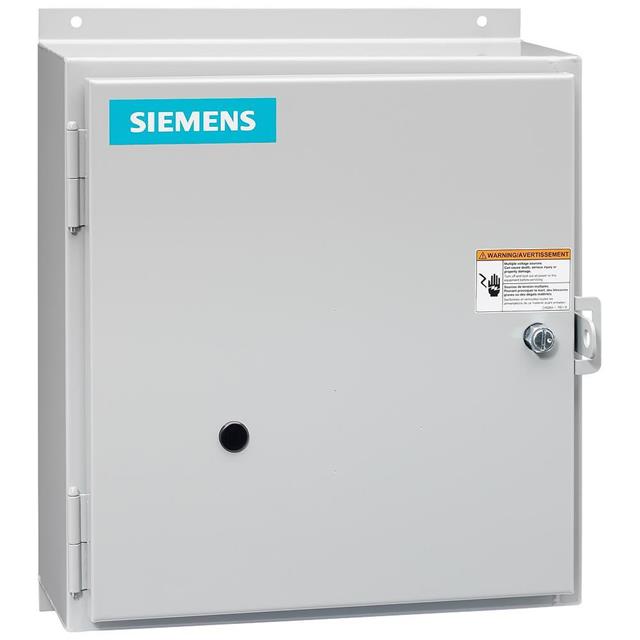

40FP820F
CONTACTOR,FVNR,S2,3PH,120VAC,N12
Technical Specifications
Parameters and characteristics for this part
| Specification | 40FP820F |
|---|---|
| Coil Power | 218 VA |
| Coil Voltage | 120 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 45 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Operate Time | 29 ms |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Pin Count | 3 pins |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 600 VAC |
| Termination Style | Screw Terminal |
