MS3116F-8-4S
ActiveAmphenol Industrial Operations

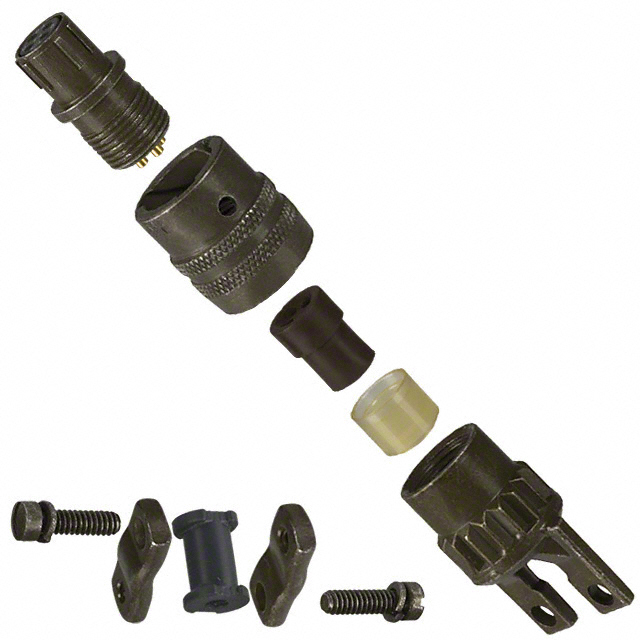

CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3116F-8-4S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3116F-8-4S | MS3116F8 Series |
|---|---|---|
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-4 | 8-3, 8-2, 8-4 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.43 | |
| 10 | $ 68.75 | |||
| 25 | $ 62.52 | |||
| 50 | $ 58.32 | |||
| 100 | $ 54.52 | |||
MS3116F8 Series
CONN PLUG MALE 3P GOLD SLDR CUP
| Part | Orientation | Shell Finish | Mounting Type | Insert Material | Applications | Qualification | Contact Finish - Mating | Grade | Connector Type | Shielding | Shell Size - Insert | Features | Primary Material | Shell Material | Color | Backshell Material, Plating | Fastening Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3116F8-3P | N | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold | Military | Male Pins, Plug | Unshielded | 8-3 | Backshell, Cable Clamp, Coupling Nut | Metal | Aluminum | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | Copper Alloy | -55 °C | 125 °C | Environment Resistant | |
Amphenol Industrial Operations MS3116F8-2P | N | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold | Military | Male Pins, Plug | Unshielded | 8-2 | Backshell, Cable Clamp, Coupling Nut | Metal | Aluminum | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | Copper Alloy | -55 °C | 125 °C | Environment Resistant | 2 |
Amphenol Industrial Operations MS3116F8-2PW | W | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold | Military | Male Pins, Plug | Unshielded | 8-2 | Backshell, Cable Clamp, Coupling Nut | Metal | Aluminum | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | Copper Alloy | -55 °C | 125 °C | Environment Resistant | 2 |
Amphenol Industrial Operations MS3116F-8-4S | N | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold | Military | Female Sockets, Plug | Unshielded | 8-4 | Backshell, Cable Clamp, Coupling Nut | Metal | Aluminum | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | Copper Alloy | -55 °C | 125 °C | Environment Resistant | 4 |
Amphenol Industrial Operations MS3116F8-2SW | W | Olive Drab Chromate over Cadmium | Free Hanging (In-Line) | Neoprene | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | MIL-DTL-26482 Series I | Gold | Military | Female Sockets, Plug | Unshielded | 8-2 | Backshell, Cable Clamp, Coupling Nut | Metal | Aluminum | Olive Drab | Aluminum, Olive Drab Chromate over Cadmium | Bayonet Lock | Copper Alloy | -55 °C | 125 °C | Environment Resistant | 2 |
Description
General part information
MS3116F8 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
