FWP-80A22FI
ActiveEaton - Electronics Division
80A 690V 22X58 INDICATED 22 X 58MM
FWP-80A22FI
ActiveEaton - Electronics Division
80A 690V 22X58 INDICATED 22 X 58MM
Description
General part information
FWP-80A22FI

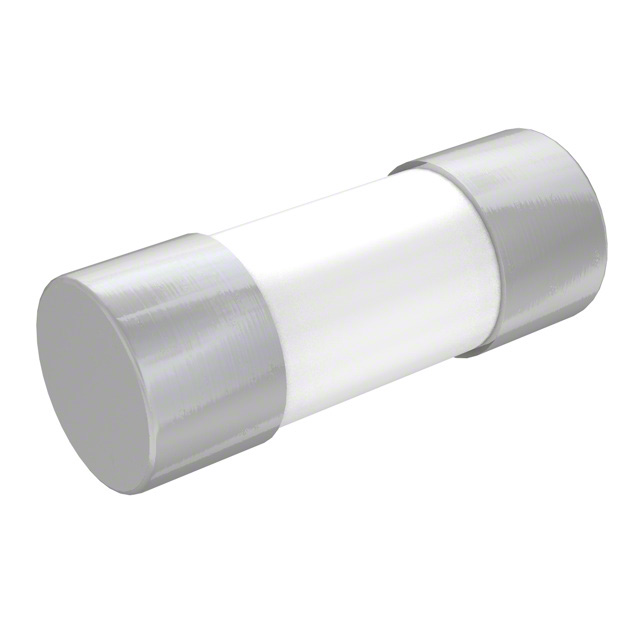

80A 700 VAC 500 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWP-80A22FI |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 50 kA |
| Current Rating | 80 A |
| Fuse Type | Cartridge |
| Melting I²t | 600 |
| Mounting Type | Requires Holder |
| Package / Case | Alarm Indicating, Cylindrical |
| Size / Dimension Diameter | 0.874 in |
| Size / Dimension Length | 2.283 in |
| Voltage Rating - AC | 700 V |
| Voltage Rating - DC | 500 V |
