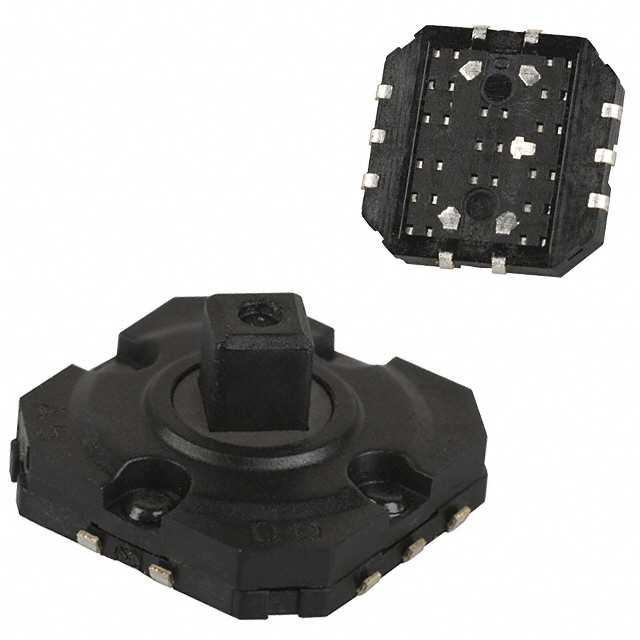

EVQ-Q5A05K
ObsoletePanasonic Electronic Components
SWITCH NAVIGATION DGTL 20MA 15V
EVQ-Q5A05K
ObsoletePanasonic Electronic Components
SWITCH NAVIGATION DGTL 20MA 15V
Description
General part information
EVQ-Q5A05K
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | EVQ-Q5A05K |
|---|---|
| Actuator Type | Plunger for Cap |
| Axis Count | 2 Axis |
| Current Rating | 20 mA |
| Electrical Life (Cycles) | 1000000 Cycles |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force (Max) | 320 gf |
| Operating Force (Min) | 160 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | J Lead |
| Type | Navigation Switch, 2 - Axis |
| Voltage Rating - DC | 15 V |
