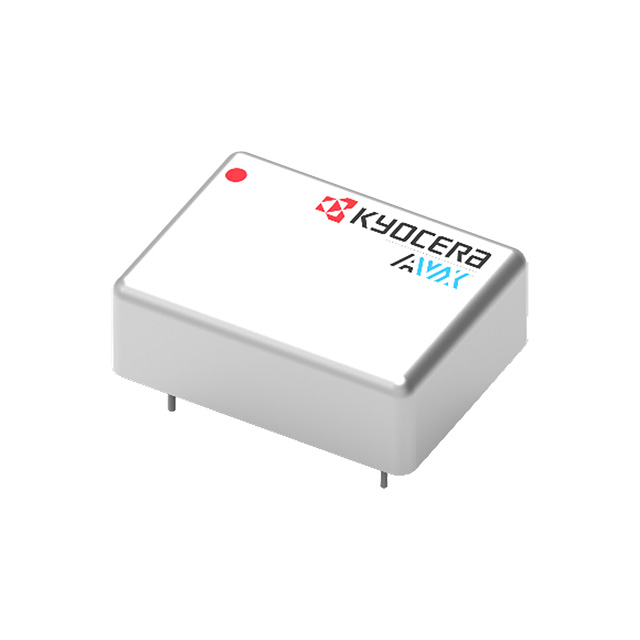

KLNCNTB100MFNECAB
ActiveKYOCERA AVX
100 MHZ OCXO TH 37X26MM (B PACKA
KLNCNTB100MFNECAB
ActiveKYOCERA AVX
100 MHZ OCXO TH 37X26MM (B PACKA
Description
General part information
KLNCNTB100MFNECAB
100 MHz OCXO Sine Wave Oscillator 12V 5-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | KLNCNTB100MFNECAB |
|---|---|
| Base Resonator | Crystal |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppb |
| Height - Seated (Max) | 12.7 mm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Sine Wave |
| Package / Case | 5-DIP Module |
| Size / Dimension Length | 1.42 in |
| Size / Dimension Width | 1.07 in |
| Type | OCXO |
| Voltage - Supply | 12 VDC |
