35680804D

Active

SAB North America

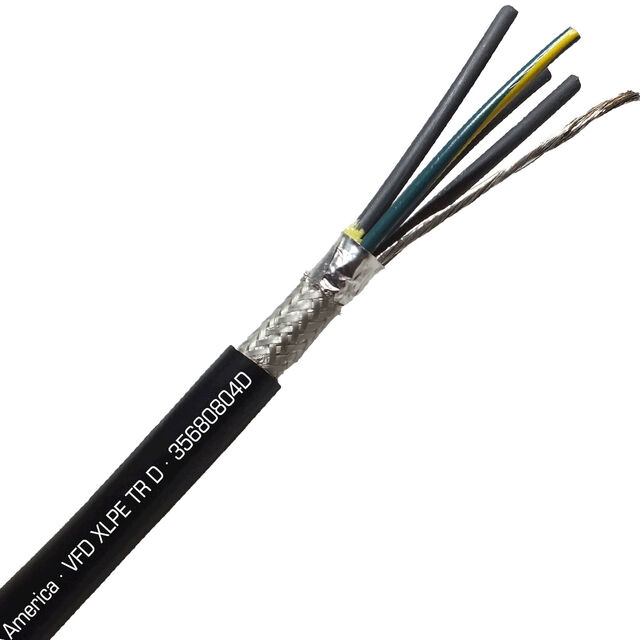

CABLE 4COND 8AWG BLK SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 4COND 8AWG BLK SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	35680804D

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Tinned
Features	Drain Wire, Oil Resistant, Flame Retardant, Direct Burial, UV Resistant
Jacket (Insulation) Diameter [diameter]	22.5 mm
Jacket (Insulation) Diameter [diameter]	0.886 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Usage	Servo Motor, Industrial
Wire Gauge	8 AWG

CABLE 4COND 8AWG BLK SHLD 1=1FT

Part	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Insulation	Conductor Material	Shield Material	Cable Type	Usage	Number of Conductors	Jacket Color	Length	Wire Gauge
SAB North America 35680804D	Direct Burial, Drain Wire, Flame Retardant, Oil Resistant, UV Resistant	Poly-Vinyl Chloride (PVC)	22.5 mm	0.886 in	Braid, Foil	Polyethylene (XLPE), Irradiated	Copper, Tinned	Copper, Tinned	Multi-Conductor	Industrial, Servo Motor	4	Black	Enter Number of Feet in Order Quantity	8 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 8 AWG Foil, Braid Enter Number of Feet in Order Quantity
