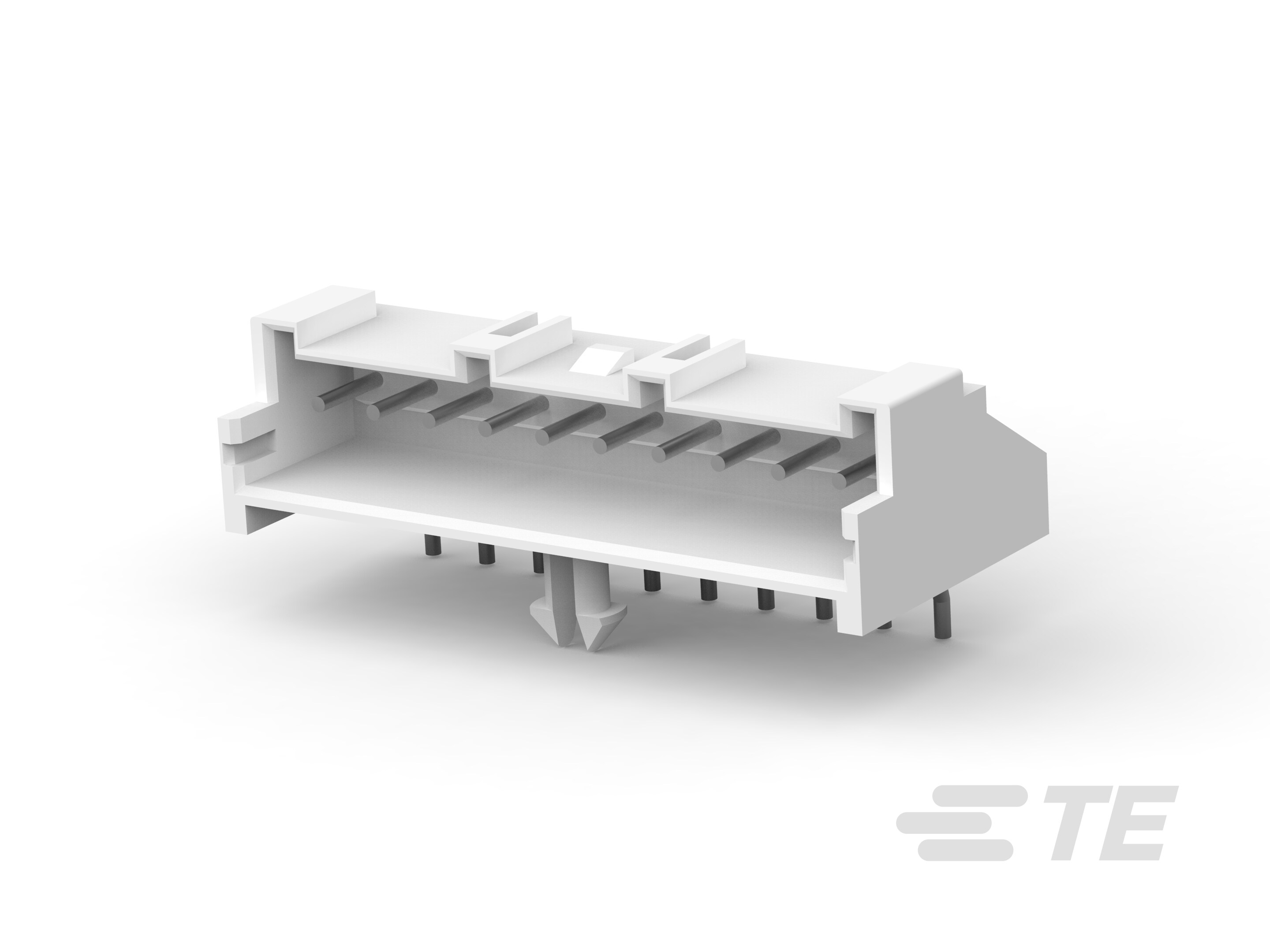

Header Housing Assy, EP 2.5 RA, 10 Pos.-1-1744426-0

1-1744426-0

Active
TE Connectivity AMP Connectors

HEADER HOUSING ASSY, EP 2.5 RA, 10 POS.

Find alt
Header Housing Assy, EP 2.5 RA, 10 Pos.-1-1744426-0

1-1744426-0

Active
TE Connectivity AMP Connectors

HEADER HOUSING ASSY, EP 2.5 RA, 10 POS.

Find alt

Description

General part information

1-1744426-0

PCB Mount Header, Right Angle, Wire-to-Board, 10 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Economy Power 2.5

Technical Specifications

Parameters and characteristics for this part

Specification1-1744426-0
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.141 in
Contact Length - Post0.126 in
Contact MaterialCopper Alloy
Contact ShapeCircular
Contact TypeMale Pin
Current Rating4.2 A
Fastening TypeFriction Lock
FeaturesBoard Lock
Insulation ColorWhite
Insulation Height0.299 in
Insulation MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions10
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationKinked Pin, Solder
Voltage Rating250 V
