100025105
ActiveTelegartner Inc
MMCX JCK STR CR/CR G3
100025105
ActiveTelegartner Inc
MMCX JCK STR CR/CR G3
Description
General part information
100025105

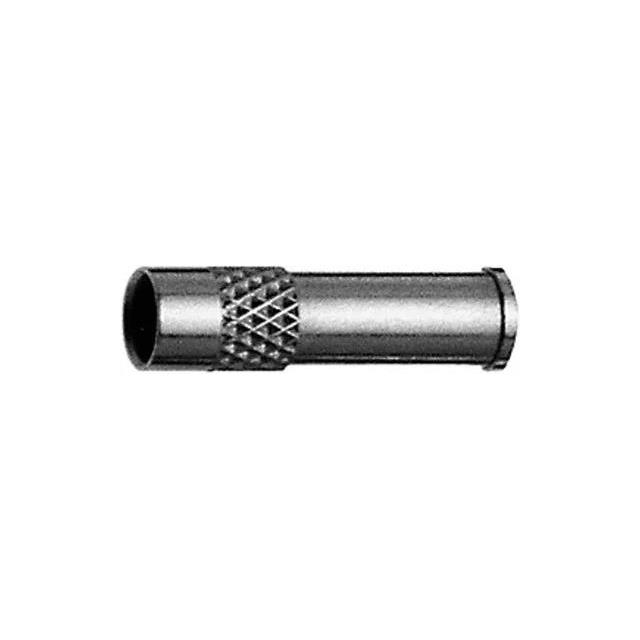

MMCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 100025105 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | 196, RG-178 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 170 V |
