EVAL-AD7768FMCZ

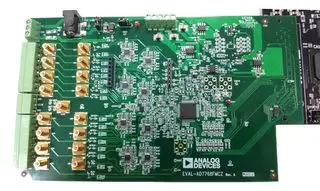

EVAL-AD7768FMCZ is an evaluation board for the AD7768 24bit, 8-channel, simultaneous sampling, 256KSPS, Sigma-Delta ADC with power scaling. A 7V to 9V external bench top supply is regulated to 5V and 3.3V to supply the AD7768 and support components. The EVALAD7768FMCZ board connects to the USB port of the PC via a connection to the EVAL-SDP-CH1Z motherboard. The AD7768 evaluation software fully configures the AD7768 device register functionality and provides dc and ac time domain analysis in the form of waveform graphs, histograms and associated noise analysis for ADC performance evaluation. Evaluation board that allows the user to evaluate the features of the ADC. The user PC software executable controls the AD7768 over a USB cable through the EVAL-SDP-CH1Z System Demonstration Platform (SDP). The AD7768 evaluation software requires PC running Windows® 7 to Windows 10 with a USB 2.0 port.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-AD7768FMCZ |
|---|---|
| Contents | Board |
| Data Interface | Serial, SPI |
| Input Range | ±VREF |
| Number of A/D Converters | 8 count |
| Number of Bits | 24 bits |
| Power (Typ) | 638 mW |
| Sampling Rate (Per Second) | 256 kHz |
| Utilized IC / Part | AD7768 |
